Stainless Steel 2PC Ball Valve

Size Range: 1/4~4"

Pressure: 1000PSI

Body Materials: SS201, SS304, SS316, WCB,BRASS

Seat Materials: PTFE

Disc Materials: SS304, SS316

INTRODUTCTION

ADVANTAGES

  • Solid valve body, more stable

    Valve body is solid body, same caliber weight is heavier than other manufacturers.

  • Valve shaft support is strong, axial sealing is reliable

    Valve shaft and valve body with 4 oil-free bearings, 3 O sealing, valve shaft support more powerful, more reliable axial sealing.

  • Ultrasonic cleaning before packaging

    Eliminate impurities in the valve body, ensure the cleanliness of the valve and prevent the valve itself to pipe water pollution.

  • Valve body spray brand epoxy resin plastic powder

    Valve body spray using brand aksu epoxy resin plastic powder, can deposit thicker thickness, melt curing adhesion is stronger.

  • Heat-shrinkable film for independent packaging

    PE thermal shrinkable film is used to package the valve independently, and built-in desiccant, to isolate air dust, avoid damp pollution valve.

  • The position of signboard is humanized

    The position of the signboard is humanized and set on both sides of the valve body for users to view after installation.

FEATURES

Standard Test:
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.

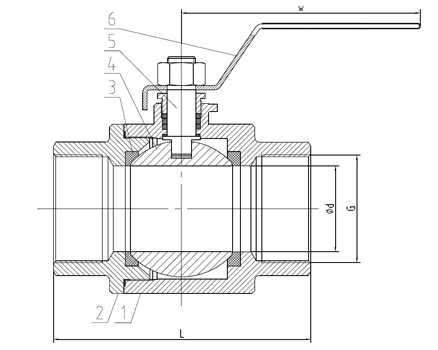

PARAMETERS

SIZE 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4"
DN 8 10 15 20 25 32 40 50 65 80 100
D 12 12 15 20 25 32 38 49 64 78 98
L 52 52 53 64 72 82 91 108 144 170 206
H 50 50 55 62 70 75 90 98 120 140 150
T 94 94 108 115 140 140 165 172 220 220 310
