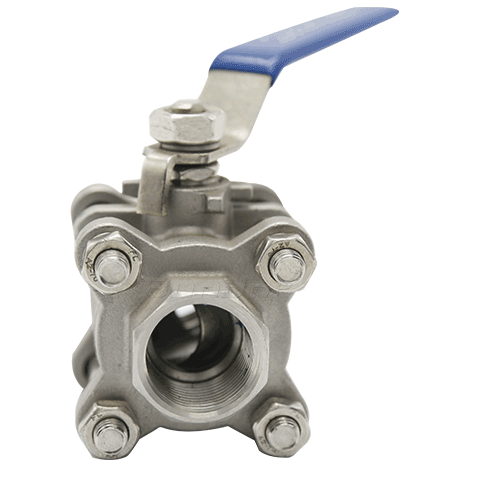

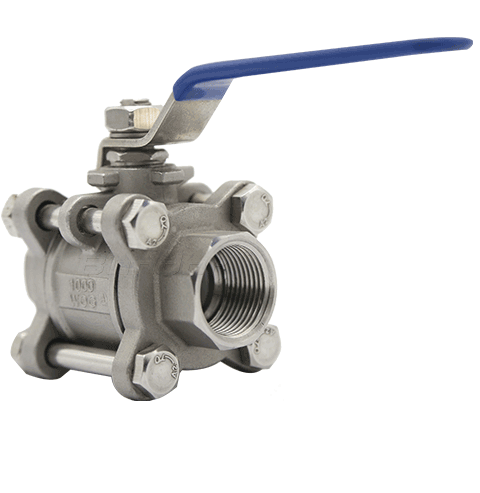

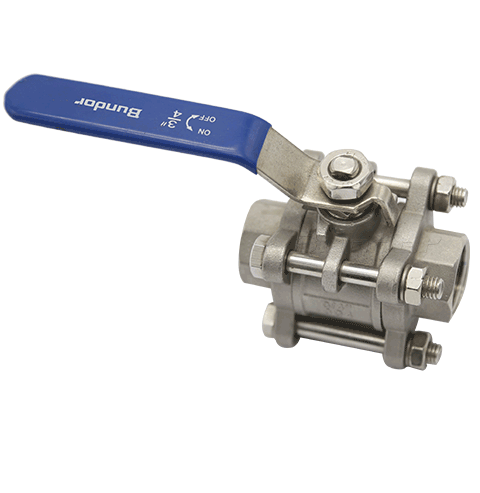

Stainless Steel 3PC Ball Valve

Size Range: 1/4~4"

Pressure: 1000PSI

Body Materials: SS201, SS304, SS316, WCB

Seat Materials: PTFE

Disc Materials: SS304, SS316

INTRODUTCTION

ADVANTAGES

  • Ultrasonic cleaning before packaging

    Eliminate impurities in the valve body, ensure the cleanliness of the valve and prevent the valve itself to pipe water pollution.

  • Heat-shrinkable film for independent packaging

    PE thermal shrinkable film is used to package the valve independently, and built-in desiccant, to isolate air dust, avoid damp pollution valve.

  • The position of signboard is humanized

    The position of the signboard is humanized and set on both sides of the valve body for users to view after installation.

  • The sign has a beautiful appearance and strong connection

    Laser marking, clear writing, long life.Use stainless steel rivet to fix, the appearance is more beautiful, the connection is more firm.

  • The bolt has strong corrosion resistance

    The bolt is made of 304 material, which has stronger corrosion resistance.

  • Disc pin has high strength and abrasion resistance

    The pin adopts tempering treatment, high strength, abrasion resistance, safe and reliable connection.

FEATURES

Standard Test:
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.

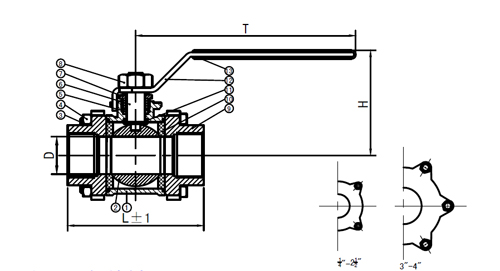

PARAMETERS

SIZE 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4"
DN 8 10 15 20 25 32 40 50 65 80 100
D 10.5 10.5 15 20 25 32 38 50 65 80 100
L     64 71 83 98 110 128 169 193 239
H 48 48 60 64 77 78 90 102 128 135 160
T 100 100 100 110 137 158 163 172 210 212 253
