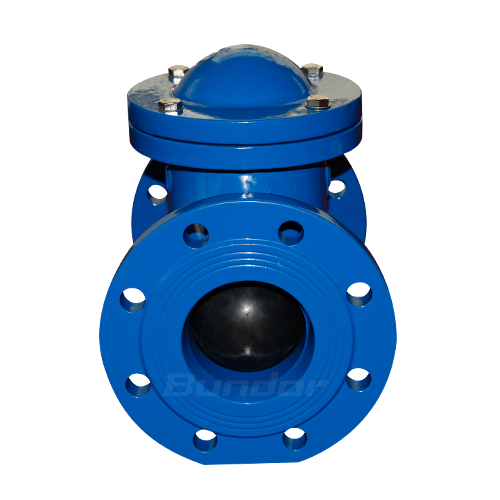

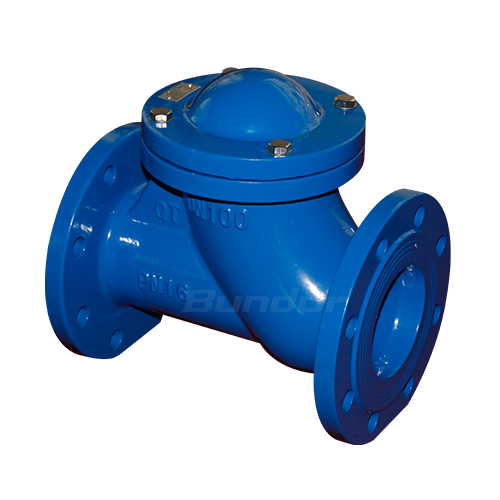

Ductile Iron Ball Check Valve

Size Range: DN50-DN400

Pressure: 125LB/150LB

Body Materials: DI

INTRODUTCTION

ADVANTAGES

  • Spheroidizing rate of valve body is grade 3

    The spheroidizing rate of valve body is grade 3, the tensile strength is 450MPa, and the elongation is greater than 10%

  • The valve body is solid and heavy, and the wall thickness reaches the standard

    The valve body is solid and heavy, and the wall thickness reaches the standard

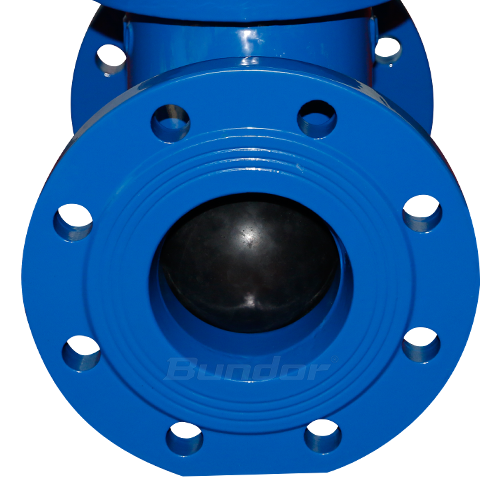

  • The ball is covered with EPDM

    The ball is covered with EPDM, the rubber content meets the standard, and the material is guaranteed

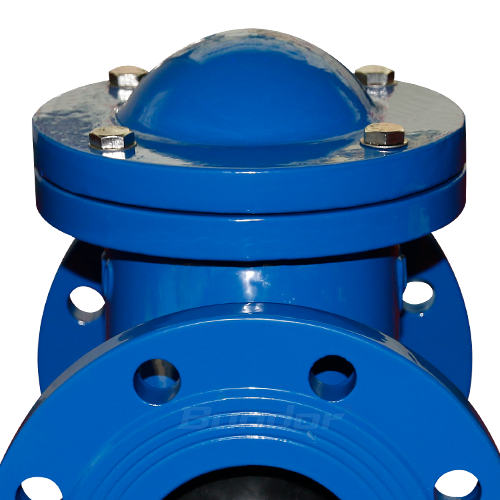

  • Using stainless steel bolts

    Using stainless steel bolts, It has high strength and strong corrosion resistance

  • Double-layer pressure detection

    Each valve needs to be tested for casing and sealed double-layer pressure according to the standards before leaving the factory.

FEATURES

FEATURES

Applicable medium:Water
Suitable temperature:0~80℃
Application field:Municipal construction, water conservancy engineering, water supply and drainage, water treatment, etc.

Product advantages:

1. The spheroidizing rate of valve body is grade 3, the tensile strength is 450MPa, and the elongation is greater than 10%
2. The valve body is solid and heavy, and the wall thickness reaches the standard
3. The ball is covered with EPDM, the rubber content meets the standard, and the material is guaranteed
4, Using stainless steel bolts, It has high strength and strong corrosion resistance
5.Each valve needs to be tested for casing and sealed double-layer pressure according to the standards before leaving the factory.

PARAMETERS

Valve Implementation Standards:
Name Design and Manufacture Structure Length Inspection and Pressure Test Standard Flange Connection
Reference Standard AWWA C508 ASME B16.10 AWWA C508 AWWA C508

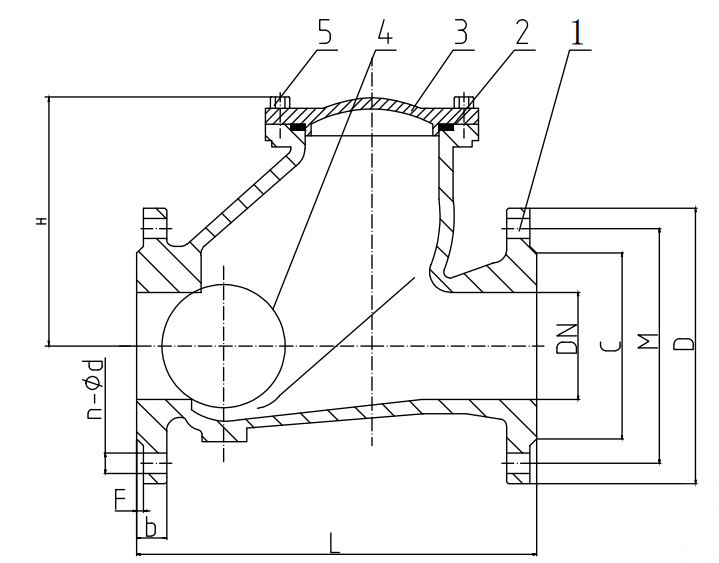

Main Parts Information:
Name Body Ring Cover Ball Bolt
Material and Description DI NBR DI 2-6″Carbon steel+EPDM          8-16″Ductile iron+EPDM Stainless Steel

Nominal Size Information:
DN NPS(inch) L D M n-d
50 2'' 203 152 120.5 4-19
65 2  1/2'' 216 178 139.5 4-19
80 3'' 241 191 152.5 4-19
100 4'' 292 229 190.5 8-19
150 6'' 356 279 241.5 8-22
200 8'' 495 343 298.5 8-22
250 10'' 622 406 362 12-25
300 12'' 698 483 432 12-25
350 14'' 787 533 476 12-29
400 16'' 914 597 539.5 16-29
