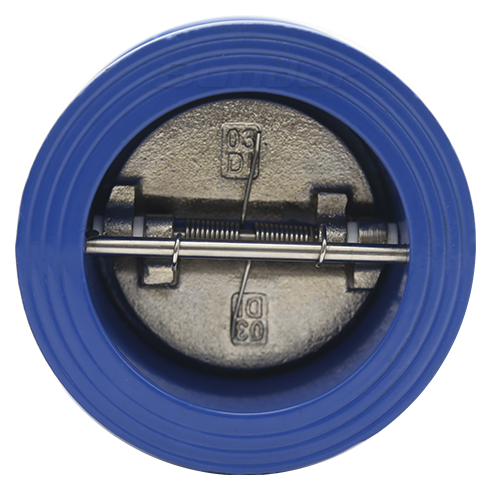

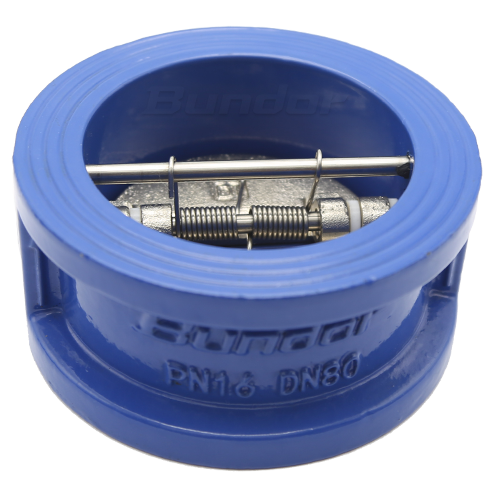

Size Range: DN50-DN300
Pressure: PN16
Body Materials: Ductile Iron
Seat Materials: EPDM
Disc Materials: Ductile Iron
Stem Materials: 304
All bonde products can provide the material inspection report of the main parts.
By CPIC 10 million quality underwrite, quality assurance 2 years, because product itself quality problem pays unconditionally.

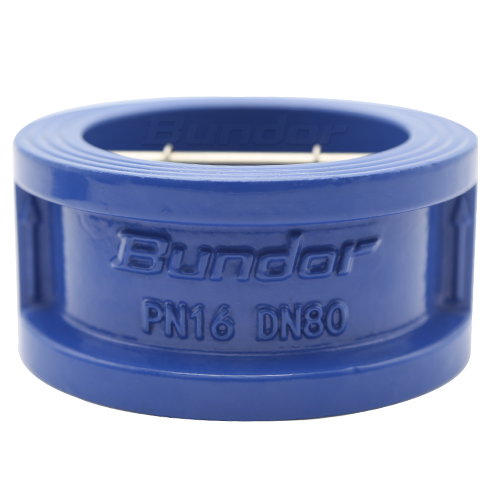

The position of the signboard is humanized and set on both sides of the valve body for users to view after installation.
The bolt is made of 304 material, which has stronger corrosion resistance.
The pin adopts tempering treatment, high strength, abrasion resistance, safe and reliable connection.
Valve shaft support is strong, axial sealing is reliable
Applicable medium：Water and non-corrosive liquids
Suitable temperature：- 20 ~ 120 ℃
Application field：Municipal construction, water conservancy projects, water supply and drainage, water treatment, etc

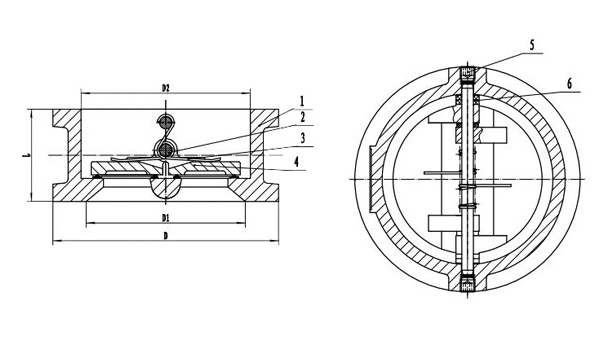

| DN | NPS（INS） | L±1.5 | D | D1 | D2 |
| 50 | 2'' | 43 | 101 | 58 | 65 |
| 65 | 2 1/2'' | 46 | 118 | 75 | 80 |
| 80 | 3'' | 64 | 132 | 85 | 94 |
| 100 | 4'' | 64 | 157 | 105 | 117 |
| 125 | 5'' | 70 | 186 | 125 | 145 |
| 150 | 6'' | 76 | 213 | 165 | 170 |
| 200 | 8'' | 89 | 272 | 215 | 224 |
| 250 | 10'' | 114 | 328 | 260 | 265 |
| 300 | 12'' | 114 | 378 | 300 | 310 |
