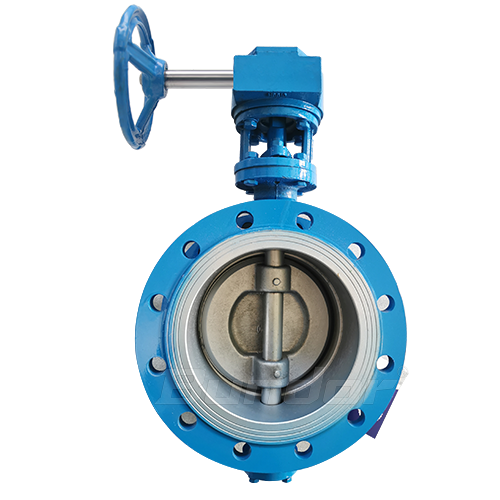

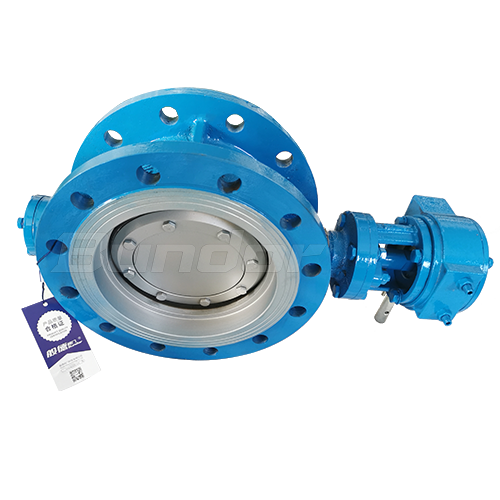

Precision casting valve body. Qualified WCB material. Fine appearance, no sand hole.
Size Range: DN50-DN600
Pressure: PN10/16/150LB
Body Materials: WCB
Seat Materials: EPDM
Disc Materials: WCB
Stem Materials: 2Cr13
Precision casting valve body. Qualified WCB material. Fine appearance, no sand hole.
Heavy valve body. Wall thickness meets the requirements of GB26640 to ensure compressive strength.
The valve body and inner parts are processed by CNC precision machine with high precision.
Different sealing materials can be selected to ensure the sealing surface wear resistance, erosion resistance, corrosion resistance, long service life.
Replaceable disc seal ring can be easily replaced.
The valve shaft is supported by self-lubricating sleeve bearings, which can reduce the friction produced during valve shaft transmission and reduce torque.
Each valve will be inspected for shell and seal pressure before leaving factory.
Epoxy coating, beautiful apperance.
| Parameter Information： | ||||
| Executive standard： | ||||
| Name | Design and manufacture | Face to face Length | Pressure Test | End Flange |
| Reference standard | GB/T 12238 | GB/T 12221 | GB/T 13927 | GB/T 9113/ASME B16.5 |
| Material of Main Parts: | |||||

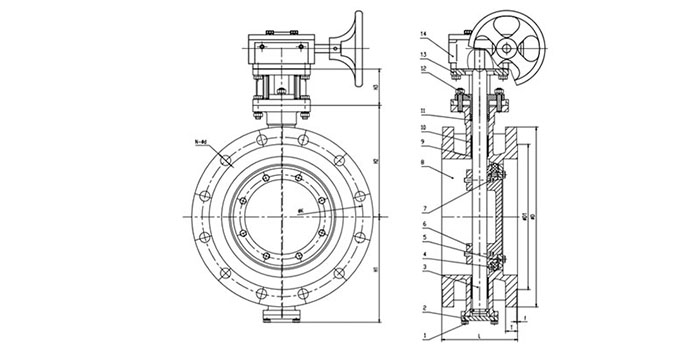

| Name | 8-Body | 4-Seat Seal | 6-Disc | 3-Shaft | 14-Gearbox |
| Material | WCB | EPDM | WCB | 2Cr13 | Component |
| Dimensions： | ||||||||
| Size | PN10 | PN16 | 150LB | |||||
| DN | NPS (Inch) | L | φk | N-φd | φk | N-φd | φk | N-φd |
| 50 | 2'' | 108 | 125 | 4-18 | 125 | 4-18 | 120.7 | 4-19 |
| 65 | 2 1/2'' | 112 | 145 | 4-18 | 145 | 4-18 | 139.7 | 4-19 |
| 80 | 3'' | 114 | 160 | 8-18 | 160 | 8-18 | 152.4 | 4-19 |
| 100 | 4'' | 127 | 180 | 8-18 | 180 | 8-18 | 190.5 | 8-19 |
| 125 | 5'' | 140 | 210 | 8-18 | 210 | 8-18 | 215.9 | 8-22.4 |
| 150 | 6'' | 140 | 240 | 8-22 | 240 | 8-22 | 241.3 | 8-22.4 |
| 200 | 8'' | 152 | 295 | 8-22 | 295 | 12-22 | 298.4 | 8-22.4 |
| 250 | 10'' | 165 | 350 | 12-22 | 355 | 12-26 | 361.9 | 12-25.4 |
| 300 | 12'' | 178 | 400 | 12-22 | 410 | 12-26 | 431.8 | 12-25.4 |
| 350 | 14'' | 190 | 460 | 16-22 | 470 | 16-26 | 476.2 | 12-28.4 |
| 400 | 16'' | 216 | 515 | 16-26 | 525 | 16-30 | 539.7 | 16-28.4 |
| 450 | 18'' | 222 | 565 | 20-26 | 585 | 20-30 | 577.8 | 16-31.8 |
| 500 | 20'' | 229 | 620 | 20-26 | 650 | 20-33 | 635 | 20-31.8 |
| 600 | 24'' | 267 | 725 | 20-30 | 770 | 20-36 | 749.3 | 20-35.1 |
