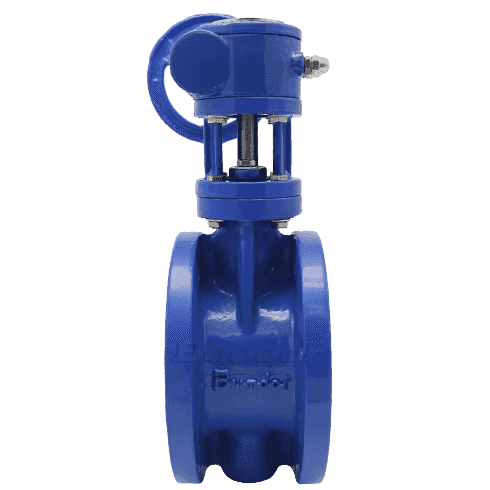

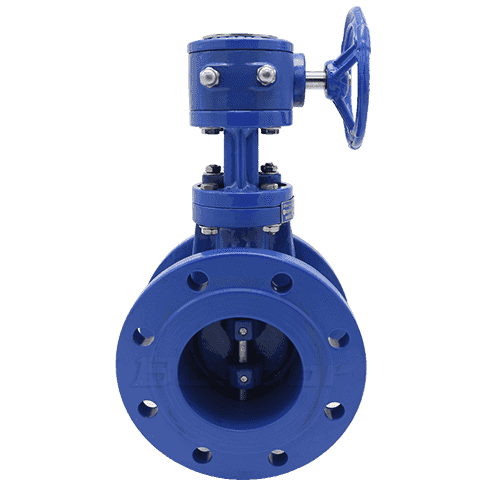

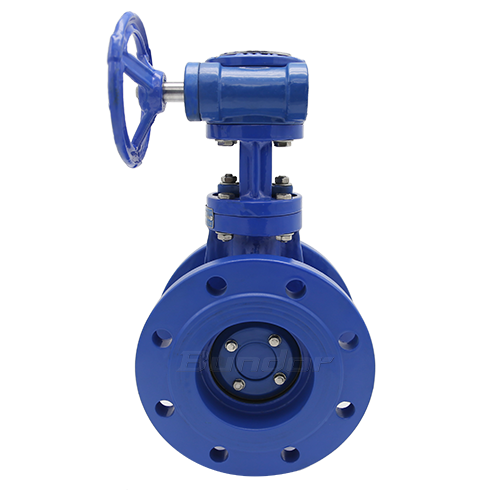

Size Range: 2''-96’’/DN50-2400
Pressure: PN1.0/1.6Mpa
Body Materials: Ductile Iron
Seat Materials: EPDM
Disc Materials: Ductile Iron
Stem Materials: 45#stainless steel
Valve body wall thickness to meet the requirements of GB 26640, thick thickness, pressure strength is guaranteed.
Valve body is qt450-10 material, mechanical properties are stronger, the same thickness of tensile strength is twice the iron body.
Convenient installation of valve, wide contact surface with flange boss on pipeline, reliable sealing performance.
Valve shaft support is strong, axial sealing is reliable
Eliminate impurities in the valve body, ensure the cleanliness of the valve and prevent the valve itself to pipe water pollution.
Laser marking, clear writing, long life.Use stainless steel rivet to fix, the appearance is more beautiful, the connection is more firm.
Features:
Applicable medium：Fresh water, sewage, sea water, weak acid and alkali, air, steam, etc.
Suitable temperature：-20 degrees Celsius to 120 degrees Celsius
Application field：Municipal construction, chemical industry, water treatment, electricity, water supply and drainage, water conservancy projects.

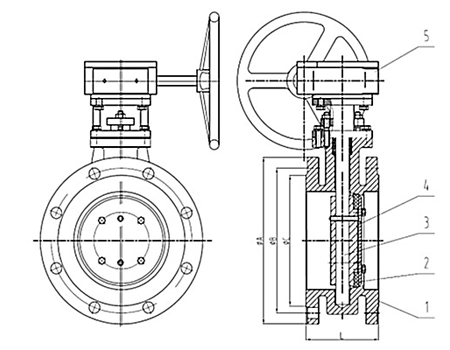

| DN | NPS | A | B | C | L | A | B | C |
| 50 | 2'' | 165 | 125 | 99 | 108 | 165 | 125 | 99 |
| 65 | 2 1/2'' | 185 | 145 | 118 | 112 | 185 | 145 | 118 |
| 80 | 3'' | 200 | 160 | 132 | 114 | 200 | 160 | 132 |
| 100 | 4'' | 220 | 180 | 156 | 127 | 220 | 180 | 156 |
| 125 | 5'' | 250 | 210 | 184 | 140 | 250 | 210 | 184 |
| 150 | 6'' | 285 | 240 | 211 | 140 | 285 | 240 | 211 |
| 200 | 8'' | 340 | 295 | 266 | 152 | 340 | 295 | 266 |
| 250 | 10'' | 395 | 350 | 319 | 165 | 405 | 355 | 319 |
| 300 | 12'' | 445 | 400 | 370 | 178 | 460 | 410 | 370 |
| 350 | 14'' | 505 | 460 | 429 | 190 | 520 | 470 | 429 |
| 400 | 16'' | 565 | 515 | 480 | 216 | 580 | 525 | 480 |
| 450 | 18'' | 615 | 565 | 530 | 222 | 640 | 585 | 548 |
| 500 | 20'' | 670 | 620 | 582 | 229 | 715 | 650 | 609 |
| 600 | 24'' | 780 | 725 | 682 | 267 | 840 | 770 | 720 |
| 700 | 28'' | 895 | 840 | 794 | 292 | 910 | 840 | 794 |
| 800 | 32'' | 1015 | 950 | 901 | 318 | 1025 | 950 | 901 |
| 900 | 36'' | 1115 | 1050 | 1001 | 330 | 1125 | 1050 | 1001 |
| 1000 | 40'' | 1230 | 1160 | 1112 | 410 | 1255 | 1170 | 1112 |
| 1200 | 48'' | 1455 | 1380 | 1328 | 470 | 1485 | 1390 | 1328 |
| 1400 | 56'' | 1675 | 1590 | 1530 | 530 | 1685 | 1590 | 1530 |
| 1600 | 64'' | 1915 | 1820 | 1750 | 600 | 1930 | 1820 | 1750 |
| 1800 | 72'' | 2115 | 2020 | 1950 | 670 | 2130 | 2020 | 1950 |
| 2000 | 80'' | 2325 | 2230 | 2150 | 760 | 2345 | 2230 | 2150 |
| 2200 | 88'' | 2550 | 2440 | 2295 | 800 | 2550 | 2440 | 2295 |
| 2400 | 96'' | 2760 | 2650 | 2495 | 850 | 2760 | 2650 | 2495 |
