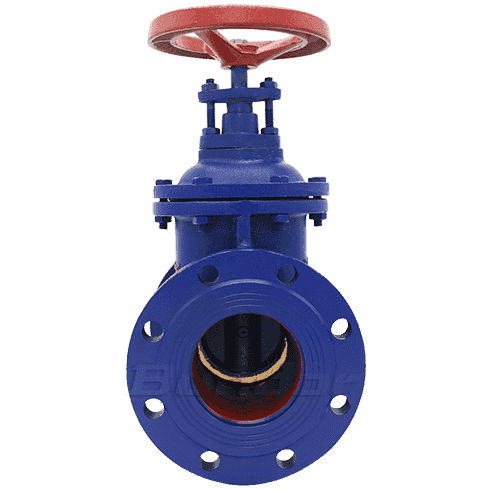

Valve body spray using brand aksu epoxy resin plastic powder, can deposit thicker thickness, melt curing adhesion is stronger.
Size Range: 2''-32''/DN50-DN800
Pressure: 5K/10K/150LB
Body Materials: cast iron
Seat Materials: Welding brass
Disc Materials: cast iron
Stem Materials: Q235
Valve body spray using brand aksu epoxy resin plastic powder, can deposit thicker thickness, melt curing adhesion is stronger.
Valve seat is made of imported rubber, with 50% rubber content, long service life and more than 10000 opening and closing times.

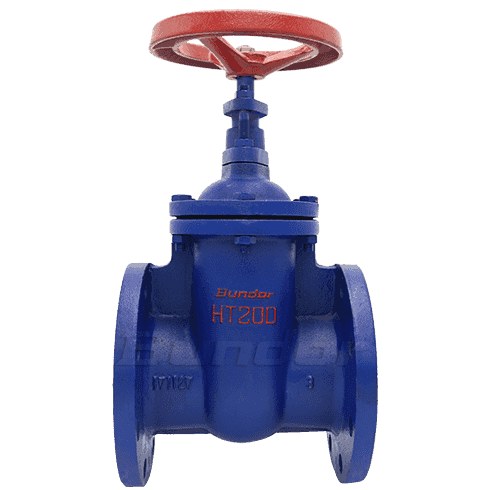

The position of the signboard is humanized and set on both sides of the valve body for users to view after installation.
Laser marking, clear writing, long life.Use stainless steel rivet to fix, the appearance is more beautiful, the connection is more firm.
PE thermal shrinkable film is used to package the valve independently, and built-in desiccant, to isolate air dust, avoid damp pollution valve.
Laser marking, clear writing, long life.Use stainless steel rivet to fix, the appearance is more beautiful, the connection is more firm.

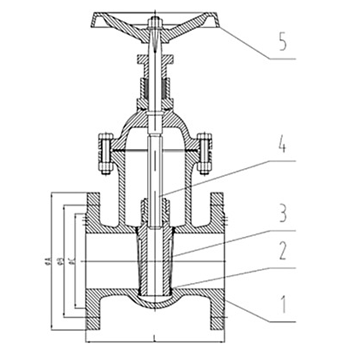

| DN | L | D | D1 | b | H | z×Φd | b-f | D0 | kg |
| 50 | 178 | 165 | 125 | 20 | 290 | 4-19 | 20-3 | 160 | 9.8 |
| 65 | 190 | 185 | 145 | 20 | 315 | 4-19 | 20-3 | 160 | 12.5 |
| 80 | 203 | 200 | 160 | 22 | 362 | 4-19/ 8-19 | 22-3 | 200 | 16.5 |
| 100 | 229 | 220 | 180 | 24 | 397 | 8-19 | 22-3 | 200 | 20.5 |
| 125 | 254 | 250 | 210 | 26 | 447 | 8-19 | 24-3 | 240 | 33.2 |
| 150 | 267 | 285 | 240 | 26 | 500 | 8-23/12-23 | 24-3 | 240 | 40.5 |
| 200 | 292 | 340 | 295 | 26/30 | 597 | 12-23 | 26-3 | 320 | 72 |
| 250 | 330 | 395/405 | 350/355 | 28/32 | 735 | 12-23 | 28-3 | 320 | 98.5 |
| 300 | 356 | 445/460 | 400/410 | 28/32 | 840 | 12-23 | 28-4 | 400 | 140 |
