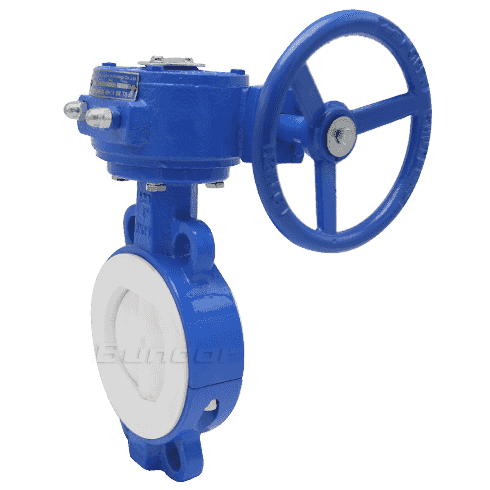

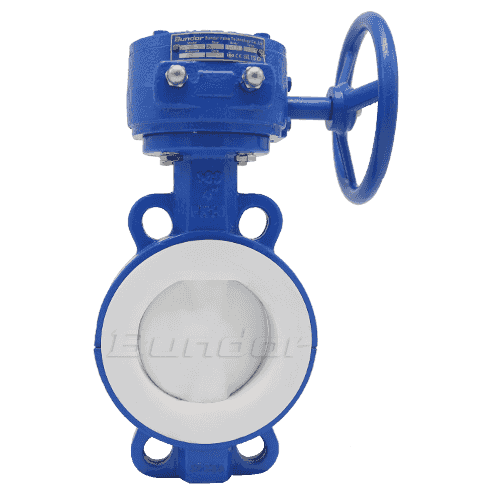

Size Range: 2’’-24’’/DN50-600
Pressure: 5K/10K/150LB
Body Materials: WCB
Seat Materials: PTFE
Disc Materials: WCB
Stem Materials: 2Cr13stainless steel
Valve body wall thickness to meet the requirements of GB 26640, thick thickness, pressure strength is guaranteed.
Eliminate impurities in the valve body, ensure the cleanliness of the valve and prevent the valve itself to pipe water pollution.
Valve body is solid body, same caliber weight is heavier than other manufacturers.
PE thermal shrinkable film is used to package the valve independently, and built-in desiccant, to isolate air dust, avoid damp pollution valve.
The position of the signboard is humanized and set on both sides of the valve body for users to view after installation.
Laser marking, clear writing, long life.Use stainless steel rivet to fix, the appearance is more beautiful, the connection is more firm.
Applicable medium：Water, weak acid and alkali, air, steam, oil, etc.
Suitable temperature：0 degrees Celsius to 150 degrees Celsius
Application field： Municipal construction, chemical industry, water treatment, electricity, petroleum, water supply and drainage, water conservancy projects.

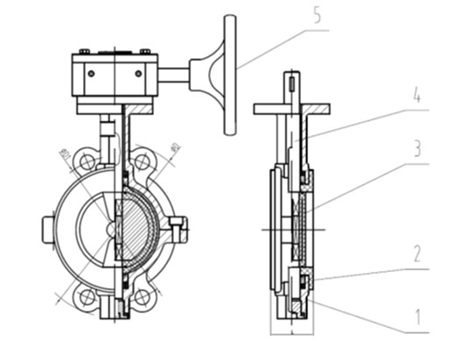

| Parts | 1 | 2 | 3 | 4 |
| Name | Body | Seat | Disc | Stem |
| Material | WCB+PTFE | PTFE | WCB+PTFE | Stainless Steel |
| DN | NPS | L | ΦD | ΦD1 | ΦD | ΦD1 | ΦD | ΦD1 |
| 50 | 2" | 43 | 165 | 125 | 165 | 125 | 165 | 120.7 |
| 65 | 2 1/2" | 46 | 185 | 145 | 185 | 145 | 185 | 139.7 |
| 80 | 3" | 46 | 200 | 160 | 200 | 160 | 200 | 152.4 |
| 100 | 4" | 52 | 220 | 180 | 220 | 180 | 220 | 190.5 |
| 125 | 5" | 56 | 250 | 210 | 250 | 210 | 250 | 215.9 |
| 150 | 6" | 56 | 285 | 240 | 285 | 240 | 285 | 241.3 |
| 200 | 8" | 60 | 340 | 295 | 340 | 295 | 340 | 298.5 |
| 250 | 10" | 68 | 395 | 350 | 405 | 355 | 405 | 362 |
| 300 | 12" | 78 | 445 | 400 | 460 | 410 | 460 | 431.8 |
| 350 | 14" | 78 | 505 | 460 | 520 | 470 | 520 | 476.3 |
| 400 | 16" | 102 | 565 | 515 | 580 | 525 | 580 | 539.8 |
| 450 | 18" | 114 | 615 | 565 | 640 | 585 | 640 | 577.9 |
| 500 | 20" | 127 | 670 | 620 | 715 | 650 | 715 | 635 |
| 600 | 24" | 154 | 780 | 725 | 840 | 770 | 840 | 749.3 |
