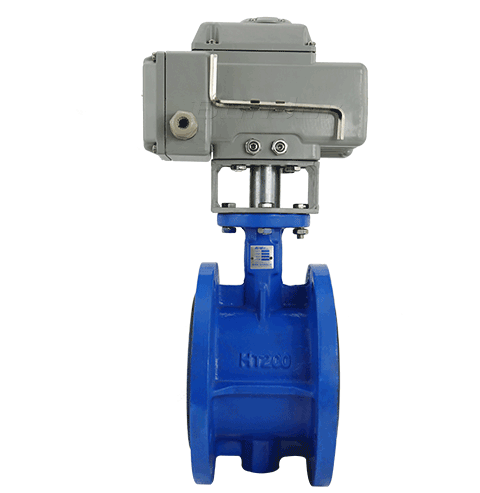

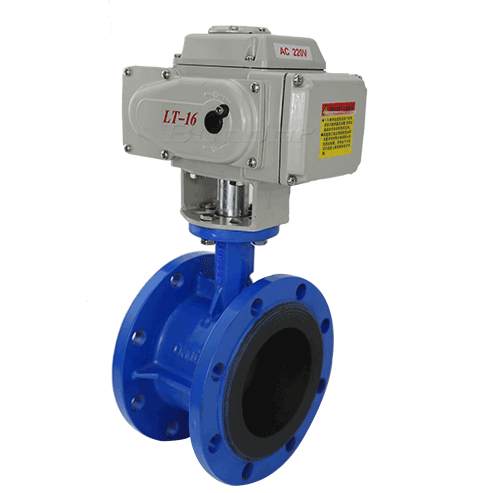

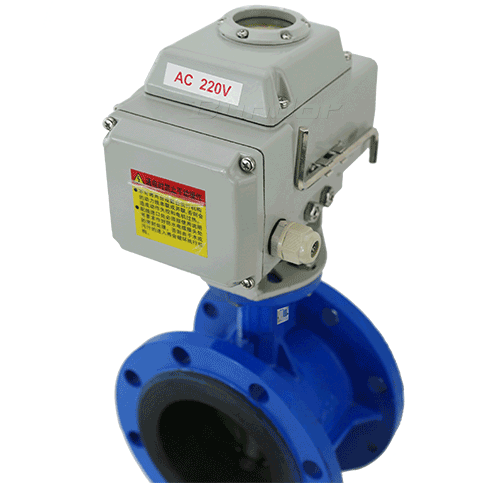

Motorized Flanged Butterfly Valve

Size Range: DN40-1000

Pressure: PN1.0/1.6MPa

Body Materials: CI,DI

Seat Materials: NBR, EPDM, VITON, PTFE

Disc Materials: Ductile Iron, WCB, CF8,CF8M

Stem Materials: SS416, SS304, SS316

INTRODUTCTION

ADVANTAGES

  • Valve body spray brand epoxy resin plastic powder

    Valve body spray using brand aksu epoxy resin plastic powder, can deposit thicker thickness, melt curing adhesion is stronger.

  • The position of signboard is humanized

    The position of the signboard is humanized and set on both sides of the valve body for users to view after installation.

  • Energy saving

    Small flow resistance, flow characteristics approximately inclined straight line, good energy saving effect.

  • Simple structure

    Simple and compact structure, light weight, easy to disassemble and repair.

  • Independent two-dimensional code identification

    Scanning code can query the inspection results of each stage in the production process of products to ensure the quality of products.

  • Provide material inspection report of main parts

    All bonde products can provide the material inspection report of the main parts.

FEATURES

1. The butterfly valve is simple in structure, small in size and light in weight, consisting of only a few parts.
2. It can be quickly opened and closed with a rotation of 90 degrees. The operation is simple, and the valve has good fluid control characteristics.
3. The butterfly plate of the electric flange butterfly valve is installed in the diameter direction of the pipe.

PARAMETERS

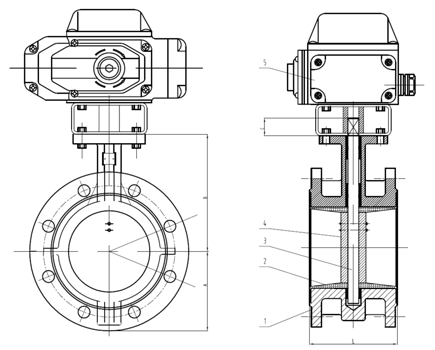

SIZE L H H0 A B
0.6MPa 1.0MPa 1.6MPa
mm in D D1 D2 n-d D D1 D2 n-d D D1 D2 n-d
50 2 108 82.5 443 125 125 140 110 88  4-14 165 125 99  4-18 165 125 99  4-18
65 2 1/2 112 92.5 463 125 125 160 130 108  4-14 185 145 118  4-18 185 145 118  4-18
80 3 114 100 483 125 125 190 150 124  4-18 200 160 132  8-18 200 160 132  8-18
100 4 127 110 498 325 125 210 170 144  4-18 220 180 156  8-18 220 180 156  8-18
125 5 140 125 682 325 245 240 200 174  8-18 250 210 184  8-18 250 210 184  8-18
150 6 140 142.5 736 325 245 265 225 199  8-18 285 240 211  8-22 285 240 211  8-22
200 8 152 170 800 325 245 320 280 254  8-18 340 295 266  8-22 340 295 266  12-22
250 10 165 197.5 895 363 313 375 335 309  12-18 395 350 319  12-22 405 355 319  12-26
300 12 178 222.5 956 363 313 440 395 363  12-22 445 400 370  12-22 460 410 370  12-26
350 14 190 252.5 1029 363 313 490 445 413  12-22 505 460 429 16-22 520 470 429 16-26
400 16 216 282.5 1103 363 313 540 495 463 16-22 565 515 480 16-26 580 525 480 16-30
450 18 222 307.5 1186 456 439 595 550 518 16-22 615 565 530 20-26 640 585 548 20-30
500 20 229 335 1280 546 431 645 600 568 20-22 670 620 582 20-26 715 650 609 20-33
600 24 267 390 1321 546 556 755 705 667 20-26 780 725 682 20-30 840 770 720 20-36
700 28 430 447.5 1431 546 556 860 810 772 24-26 895 840 794 24-30 910 840 794 24-36
800 32 470 507.5 1542 546 556 975 920 878 24-30 1015 950 901 24-33 1025 950 901 24-39
900 36 510 557.5 1800 617 706 1075 1020 978 24-30 1115 1050 1001 28-33 1125 1050 1001 28-39
1000 40 550 615 2363 632 706 1175 1120 1078 28-30 1230 1160 1112 28-36 1255 1170 1112 28-42
