Size Range: DN50-DN1200
Pressure: Class 150
Body Materials: DI
Seat Materials: EPDM
Disc Materials: DI+EPDM
Stem Materials: 2Cr13
Level-3 spheroidization rate of valve body.Tensile strength is 450Mpa, elongation rate is higher than 10%.
Epoxy coating for both valve inside and outside. Over 250μm coating thickness.
50% rubber content EPDM coated Dl wedge.The rubber is firmly coated with wedge, which is not easy to fall off.
2Cr13 valve stem. Three O-ring sealing design. Replace the sealing ring without stopping service.
Brass stem nut and positioning device, switch smoother and avoids jamming during operation.
Suitable Medium：Fresh water, sewage, sea water, acid, etc.
Working Temperature: -20℃～120℃
Application field：Municipal construction, water conservancy projects, oil products, water supply and drainage, water treatment.
| Executive Standard | |||||
| Name | Design and manufacture | Face to face Length | Pressure Test | End flange | |
| Reference standard | AWWA C515-2009 | ASME B16.10 | API 598 | ASME B16.1 | |
| Material of Main Parts | |||||
| Name | Body | Seat | Disc | Stem | Actuator |
| Material | DI | EPDM | DI+EPDM | 2Cr13 | Handwheel |
| Optional | DI | NBR/Food Grade EPDM | DI+NBR/Food Grade EPDM | 45#/304/316 | Gear/Motorized/Pneumatic |

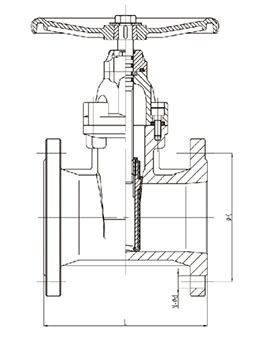

| Dimensions | |||||
| size | |||||
| DN | NPS(Inch) | L | ΦK | N-Φd | |
| DN50 | 2" | 178 | 120.7 | 4-Φ19 | |
| DN65 | 2.5" | 190 | 139.7 | 4-Φ19 | |
| DN80 | 3" | 203 | 152.4 | 4-Φ19 | |
| DN100 | 4" | 229 | 190.5 | 8-Φ19 | |
| DN125 | 5" | 254 | 215.9 | 8-Φ22.4 | |
| DN150 | 6" | 267 | 241.3 | 8-Φ22.4 | |
| DN200 | 8" | 292 | 298.4 | 8-Φ22.4 | |
| DN250 | 10" | 330 | 361.9 | 12-Φ25.4 | |
| DN300 | 12" | 356 | 431.8 | 12-Φ25.4 | |
| DN350 | 14" | 381 | 476.2 | 12-Φ28.4 | |
| DN400 | 16" | 406 | 539.7 | 16-Φ28.4 | |
| DN450 | 18" | 432 | 577.8 | 16-Φ31.8 | |
| DN500 | 20" | 457 | 635.0 | 20-Φ31.8 | |
| DN600 | 24" | 508 | 749.3 | 20-Φ35.1 | |
| DN700 | 28" | 610 | 863.6 | 28-Φ35.1 | |
| DN800 | 32" | 711 | 977.9 | 28-Φ41.1 | |
| DN900 | 36" | 711 | 1085.8 | 32-Φ41.1 | |
| DN1000 | 40" | 813 | 1200.2 | 38-Φ41.1 | |
| DN1200 | 48" | 864 | 1422.4 | 44-Φ41.1 | |
