Valve side flange conform to a variety of domestic and foreign standards of multiple pressures, easy connection, wide adaptability.
Size Range: 2''-48''/DN50-DN1200
Pressure: 10K
Body Materials: DI
Seat Materials: NBR/EPDM/PTFE
Disc Materials: DI+NBR/EPDM/PTFE
Stem Materials: 45#/2Cr13/ 304/316stainless steel
Valve side flange conform to a variety of domestic and foreign standards of multiple pressures, easy connection, wide adaptability.
Valve body is qt450-10 material, mechanical properties are stronger, the same thickness of tensile strength is twice the iron body.
Convenient installation of valve, wide contact surface with flange boss on pipeline, reliable sealing performance.
Valve body is solid body, same caliber weight is heavier than other manufacturers.
Valve shaft and valve body with 4 oil-free bearings, 3 O sealing, valve shaft support more powerful, more reliable axial sealing.
Valve body spray using brand aksu epoxy resin plastic powder, can deposit thicker thickness, melt curing adhesion is stronger.

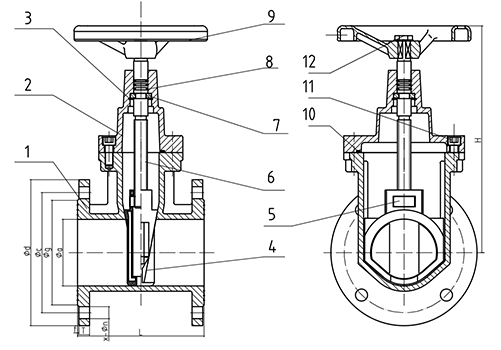

| DN | L-mm | d-mm | c-mm | x-n | T-mm | f-mm | g-mm | working pressure | |||
| PN10 | PN16 | PN10 | PN16 | 10kg | 16kg | ||||||
| 50 | 150 | 165 | 165 | 125 | 125 | 4-ф19 | 16.5 | 3 | 99 | PN10/16 | |
| 65 | 170 | 185 | 185 | 145 | 145 | 4-ф19 | 17 | 3 | 118 | ||
| 80 | 180 | 200 | 200 | 160 | 160 | 8-ф19 | 19 | 3 | 132 | ||
| 100 | 190 | 220 | 220 | 180 | 180 | 8-ф19 | 20 | 3 | 156 | ||
| 125 | 200 | 250 | 250 | 210 | 210 | 8-ф19 | 20 | 3 | 184 | ||
| 150 | 210 | 285 | 285 | 240 | 240 | 8-ф19 | 20 | 3 | 211 | ||
| 200 | 230 | 340 | 340 | 295 | 295 | 8-ф23 | 12-ф23 | 20 | 3 | 266 | |
| 250 | 250 | 405 | 405 | 350 | 355 | 12-ф23 | 12-ф26 | 25 | 3 | 319 | |
| 300 | 270 | 460 | 460 | 400 | 410 | 12-ф23 | 12-ф26 | 28 | 4 | 370 | |
| 350 | 290 | 520 | 520 | 460 | 470 | 16-ф23 | 16-ф26 | 28 | 4 | 430 | |
| 400 | 310 | 580 | 580 | 515 | 525 | 16-ф25 | 16-ф30 | 28 | 4 | 475 | |
| 450 | 330 | 615 | 640 | 565 | 585 | 20-ф26 | 20-ф30 | 32 | 4 | 565/585 | |
| 500 | 350 | 670 | 715 | 620 | 650 | 20-ф25 | 20-ф34 | 29 | 4 | 580 | |
| 600 | 390 | 780 | 840 | 725 | 770 | 20-ф30 | 20-ф36 | 38 | 4 | 680 | |
| 700 | 430 | 895 | 910 | 840 | 840 | 24-ф30 | 24ф36 | 40 | 5 | 800/793 | |
| 800 | 470 | 1015 | 1025 | 950 | 950 | 24-ф33 | 24-ф40 | 44 | 5 | 905/900 | |
