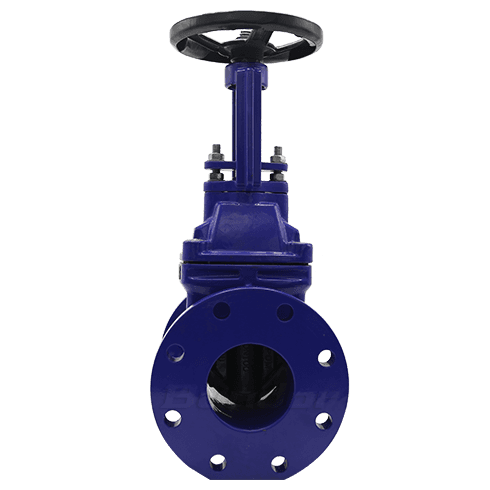

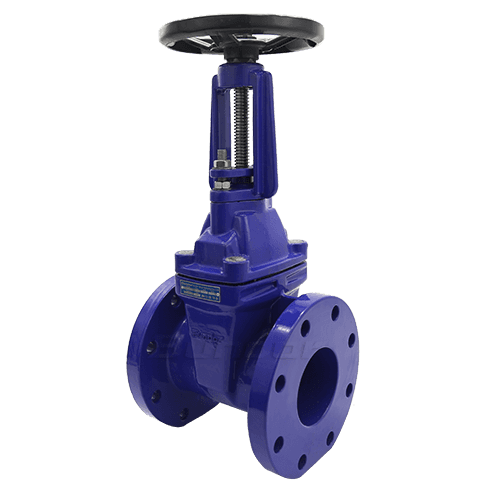

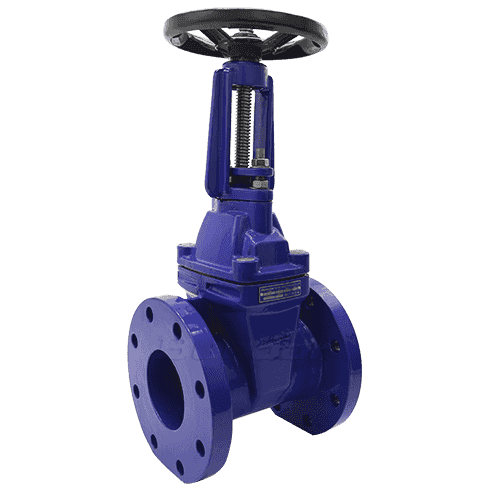

Size Range: 2''-32''/DN50-DN800
Pressure: PN1.0-1.6MPa
Body Materials: Ductile Iron
Seat Materials: EPDM
Disc Materials: Ductile Iron+EPDM
Stem Materials: 2cr13stainless steel
Valve body wall thickness to meet the requirements of GB 26640, thick thickness, pressure strength is guaranteed.
Valve side flange conform to a variety of domestic and foreign standards of multiple pressures, easy connection, wide adaptability.
Valve body is solid body, same caliber weight is heavier than other manufacturers.
PE thermal shrinkable film is used to package the valve independently, and built-in desiccant, to isolate air dust, avoid damp pollution valve.
Eliminate impurities in the valve body, ensure the cleanliness of the valve and prevent the valve itself to pipe water pollution.
All bonde products can provide the material inspection report of the main parts.
Product Features：
Low torque operation
Rubber encapsulated wedge
Clockwise closing direction
Fusion bonded epoxy coated inside and outside

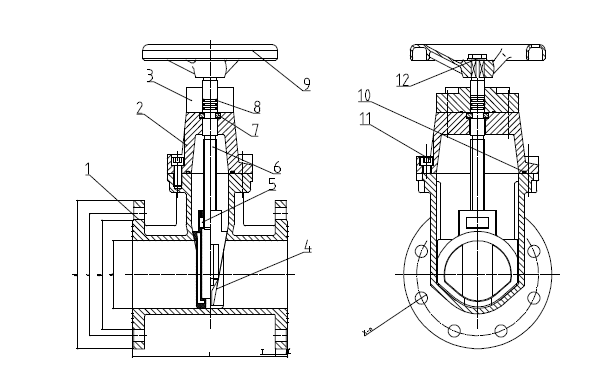

Main components and their materials:
| NUM | Name | Material |
| 1 | Stem | 2Cr13 |
| 2 | Gland | Ductile Iron |
| 3 | "O" Ring | NBR |
| 4 | "O" Ring | NBR |
| 5 | Splint Collar | Iron+ Electroplate |
| 6 | Gland Nuts | Steel 8.8+Wax |
| 7 | Stem Nut | Brass |
| 8 | Wedge | Ductile Iron+ EPDM |
| 9 | Bonnet | Ductile Iron |
| 10 | Nuts | Steel 8.8+Wax |
| 11 | Middle Gasket | NBR |
| 12 | Body | Ductile Iron |
| 13 | Hand wheel | Ductile Iron |
Dimensions & Weight & Price：
| L | Flange dimensions to BS4504(mm) | WEIGHT (KG/PCS) | |||||||||||
| DN | D | D1 | D2 | n-d | |||||||||
| (mm) | 1 | 1.6 | 1 | 1.6 | 1 | 1.6 | f | t | 1 | 1.6 | NRS | RS | |
| MPa | MPa | MPa | MPa | MPa | MPa | MPa | MPa | ||||||
| 50 | 178 | 160 | 125 | 99 | 3 | 17 | 4-18 | 10 | 11.5 | ||||
| 65 | 190 | 180 | 145 | 118 | 3 | 17 | 4-18 | 12.5 | 14 | ||||
| 80 | 203 | 195 | 160 | 132 | 3 | 18 | 4-18 | 16.5 | 18.5 | ||||
| 100 | 229 | 215 | 180 | 156 | 3 | 19 | 4-18 | 20.5 | 23 | ||||
| 125 | 254 | 245 | 210 | 184 | 3 | 20 | 4-18 | 27 | 31 | ||||
| 150 | 267 | 280 | 240 | 211 | 3 | 21 | 4-18 | 40 | 44 | ||||
| 200 | 292 | 335 | 295 | 266 | 3 | 20 | 8-12 | 12-12 | 60 | 65 | |||
| 250 | 330 | 390 | 400 | 350 | 355 | 319 | 3 | 22 | 12-12 | 12-26 | 95 | 101 | |
| 300 | 356 | 440 | 455 | 400 | 410 | 370 | 4 | 24.5 | 12-12 | 12-26 | 128 | 136 | |
| 350 | 381 | 500 | 510 | 460 | 470 | 429 | 4 | 26.5 | 16-22 | 16-26 | 175 | 185 | |
| 400 | 406 | 560 | 575 | 515 | 525 | 480 | 4 | 28 | 16-26 | 16-30 | 230 | 245 | |
| 450 | 432 | 615 | 640 | 565 | 585 | 530 | 548 | 4 | 30 | 20-26 | 20-30 | 330 | 350 |
| 500 | 457 | 670 | 715 | 620 | 650 | 582 | 609 | 4 | 31.5 | 20-26 | 20-33 | 390 | 425 |
| 600 | 508 | 780 | 840 | 725 | 770 | 682 | 720 | 5 | 36 | 20-30 | 20-36 | 580 | 610 |
