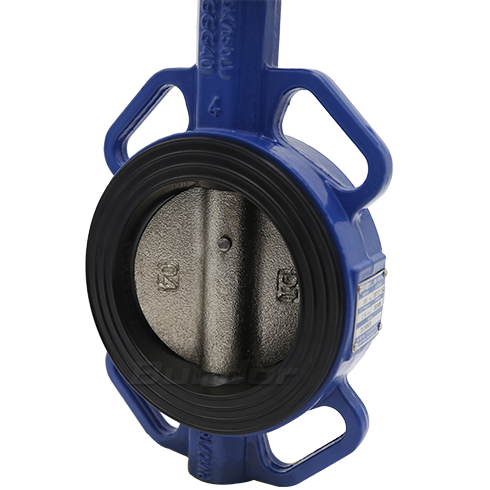

Valve seat is made of imported rubber, with 50% rubber content, long service life and more than 10000 opening and closing times.
Size Range: DN50-DN200
Pressure: PN16
Body Materials: Ductile Iron
Seat Materials: (EPDM/NBR/PTFE) (50% adhesive content)
Disc Materials: Ductile Iron,CF8,CF8M
Stem Materials: 45#/420/304/316
Valve seat is made of imported rubber, with 50% rubber content, long service life and more than 10000 opening and closing times.
Convenient installation of valve, wide contact surface with flange boss on pipeline, reliable sealing performance.
Valve body is solid body, same caliber weight is heavier than other manufacturers.
Scanning code can query the inspection results of each stage in the production process of products to ensure the quality of products.
All bonde products can provide the material inspection report of the main parts.
By CPIC 10 million quality underwrite, quality assurance 2 years, because product itself quality problem pays unconditionally.

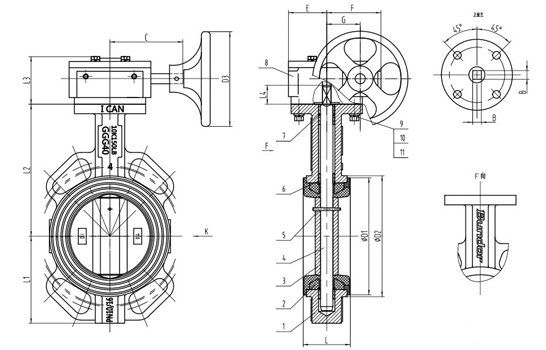

| Parts | 1 | 2 | 3 | 4 | 5 | 6 |
| Name | Body | Seat | Disc | Stem | O-rings | Handle |
| Material | DI | EPDM/NBR | DI/SS304/SS316 | SS304/SS316 | EPDM/NBR | CI |
| NPS | DN | L | D1 | D2 | L1 | L2 | L3 | L4 | B | C | E | F | G | D3 | ISO5211 Top Flange |
| 2″ | DN50 | 48 | 86 | 92.3 | 75 | 129 | 59 | 24 | 9 | 110 | 45 | 67 | 44 | 136 | F05 |
| 2.5″ | DN65 | 52 | 101 | 107 | 82 | 136 | 59 | 24 | 9 | 110 | 45 | 67 | 44 | 136 | F05 |
| 3″ | DN80 | 53 | 116 | 122 | 99 | 153 | 59 | 24 | 9 | 110 | 45 | 67 | 44 | 136 | F05 |
| 4″ | DN100 | 58 | 148 | 153 | 110 | 167 | 59 | 24 | 11 | 110 | 45 | 67 | 44 | 136 | F07 |
| 5″ | DN125 | 62 | 174 | 179 | 125 | 193 | 59 | 24 | 14 | 110 | 45 | 67 | 44 | 136 | F07 |
| 6″ | DN150 | 62 | 204 | 208.4 | 145 | 209 | 59 | 24 | 14 | 110 | 45 | 67 | 44 | 136 | F07 |
| 8″ | DN200 | 65 | 252 | 262.3 | 170 | 251 | 75 | 30 | 17 | 172 | 61 | 85 | 53 | 277 | F10 |
