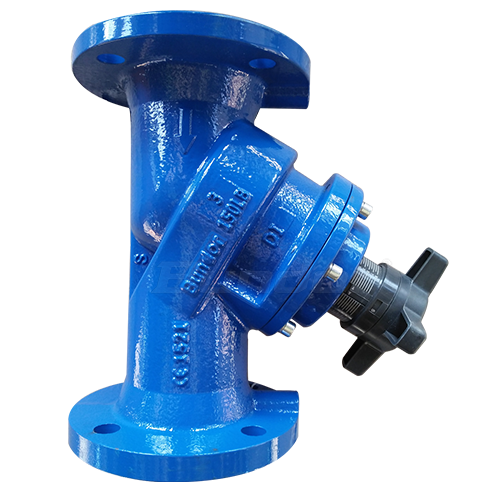

Size Range: DN20-DN600
Pressure: PN16
Body Materials: DI
Stem Materials: 304
The wall thickness and dimension of valves should be in strict accordance with GB / t29735-2013
With advanced technology diaphragm, theoretical error is zero, and it can bear pressure difference of 0.8MPa
Ensure that each product is tested in strict accordance with the standard before leaving the factory, including pressure test, simulation test bench to simulate user use, etc. Ensure 100% qualified delivery
Quality inspection of each link from blank to finished product packaging
As for the products of Bundor, they are insured by the Pacific insurance company with the quality of 10 million yuan, and the warranty lasts for 2 years. If they are damaged within two years, we guarantee pay two if one bad, and they will be compensated f
Features:
Applicable medium：Water, oil, and other liquids
Suitable temperature：0℃～100℃
Application field：Municipal construction, air conditioning system, water supply and drainage, water treatment etc.

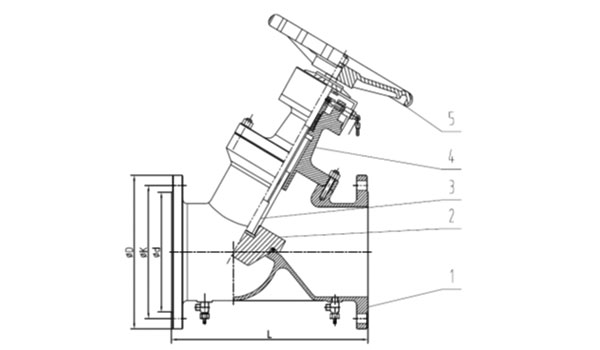

| Name | Body | Valve core | Stem | Cover | Handwheel |
| Material | DI | DI | 304 | DI | DI |
| Nominal size | L | PN16 | |||
| DN | NPS（inch） | ΦD | ΦK | Φd | |
| 20 | 3/4" | 150 | 105 | 75 | 56 |
| 25 | 1" | 160 | 115 | 85 | 65 |
| 32 | 1 1/4" | 180 | 140 | 100 | 76 |
| 40 | 1 1/2'' | 200 | 150 | 110 | 84 |
| 50 | 2'' | 230 | 165 | 125 | 99 |
| 65 | 2 1/2'' | 290 | 185 | 145 | 118 |
| 80 | 3'' | 310 | 200 | 160 | 132 |
| 100 | 4'' | 350 | 220 | 180 | 156 |
| 125 | 5'' | 400 | 250 | 210 | 184 |
| 150 | 6'' | 480 | 285 | 240 | 211 |
| 200 | 8'' | 600 | 340 | 295 | 266 |
| 250 | 10'' | 730 | 405 | 355 | 319 |
| 300 | 12'' | 850 | 460 | 410 | 370 |
| 350 | 14'' | 980 | 520 | 470 | 429 |
| 400 | 16'' | 1100 | 580 | 525 | 480 |
| 450 | 18'' | 1200 | 640 | 585 | 548 |
| 500 | 20'' | 1250 | 715 | 650 | 609 |
| 600 | 24'' | 1450 | 840 | 770 | 720 |
