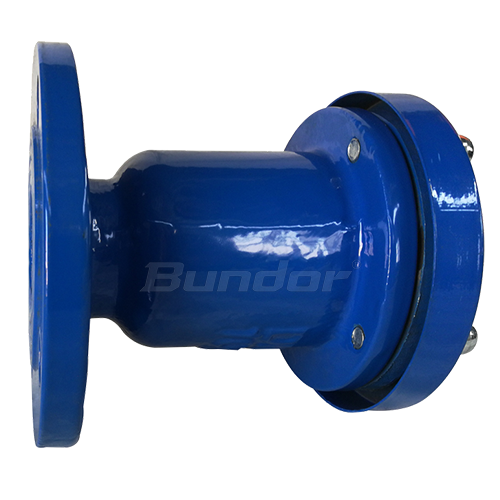

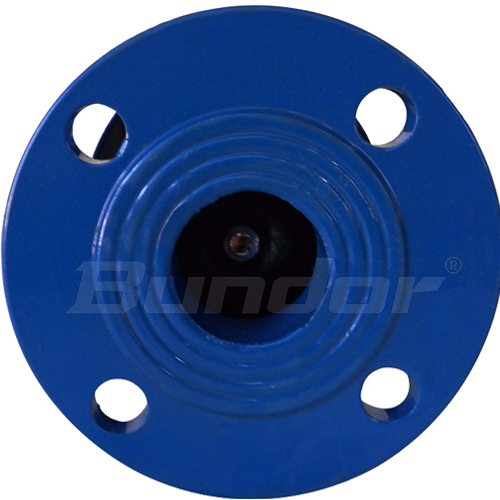

QT450-10 body material. Level-3 spheroidization rate of valve body. Tensile strength is 450Mpa, elongation rate is higher than 10%.
Size Range: DN50-DN200
Pressure: PN10/16
Body Materials: QT450/WCB/CF8
Seat Materials: EPDM/NBR
QT450-10 body material. Level-3 spheroidization rate of valve body. Tensile strength is 450Mpa, elongation rate is higher than 10%.
The valve body and inner parts are processed by precision CNC machine.
SS304 floating ball, higher corrosion resistance.
Each valve will be cleaned by Ultrasonic clearing machine before packed.
Each valve will be tested pressure before leaving factory.
| Parameter Information | |||||
| Executive standard： | |||||
| Name | Design and manufacture | Face to face Length | Pressure Test | ||
| Reference standard | GB/T 18693-2002 | HG/T 20592-2009 EN1092-1 |
API 598-2004 | ||
| Material of Main Parts: | |||||
| Name | Body | Seat | Floating Ball | ||
| Material | QT450/WCB/CF8 | EPDM/NBR | 201/304/316 | ||

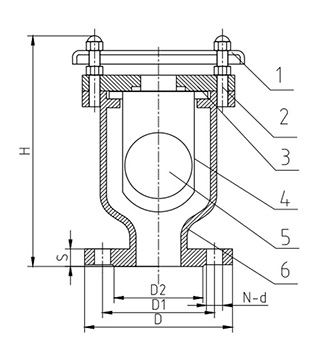

| Dimensions： | |||||
| Size | |||||
| DN | NPS (Inch) | H | ΦD | ΦD1 | N-φd |
| 50 | 2'' | 245 | 165 | 125 | 4-18 |
| 65 | 2 1/2'' | 277 | 185 | 145 | 8-18 |
| 80 | 3'' | 277 | 200 | 160 | 8-18 |
| 100 | 4'' | 300 | 220 | 180 | 8-18 |
| 125 | 5'' | 378 | 250 | 210 | 8-18 |
| 150 | 6'' | 378 | 285 | 240 | 8-22 |
| 200 | 8'' | 433 | 340 | 295 | 12-22 |
