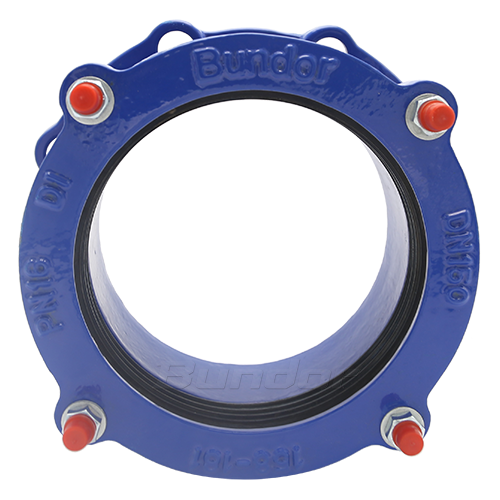

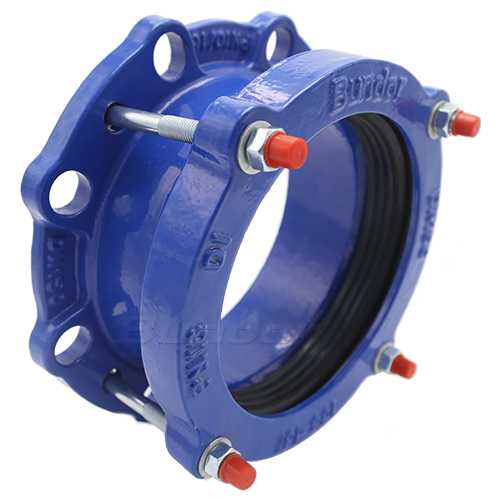

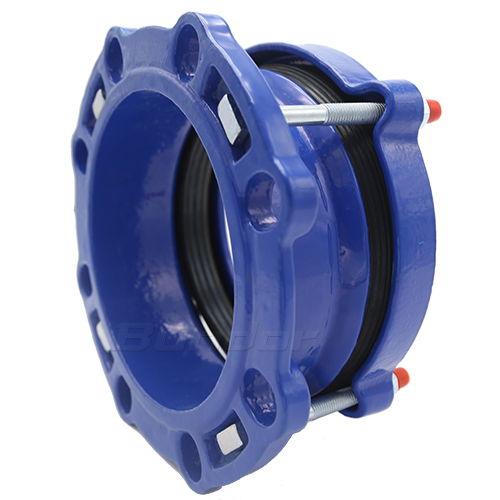

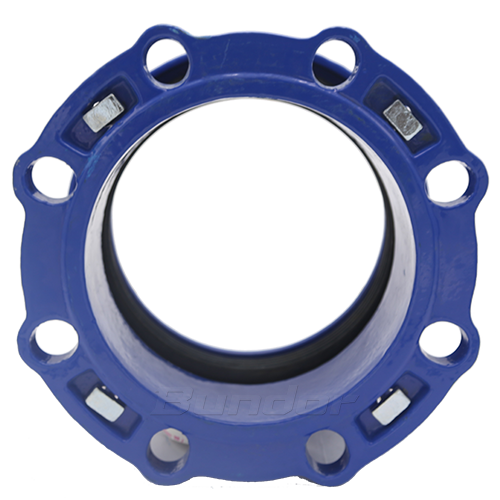

Ductile Iron Flange Adapter

Size Range: DN150

Pressure: PN16,250PSI

Body Materials: QT450-10

Seat Materials: EPDM

INTRODUTCTION

ADVANTAGES

  • Pay two back if one bad

    By CPIC 10 million quality underwrite, quality assurance 2 years, because product itself quality problem pays unconditionally.

  • Provide material inspection report of main parts

    All bonde products can provide the material inspection report of the main parts.

  • Independent two-dimensional code identification

    Scanning code can query the inspection results of each stage in the production process of products to ensure the quality of products.

  • Disc pin has high strength and abrasion resistance

    The pin adopts tempering treatment, high strength, abrasion resistance, safe and reliable connection.

  • The bolt has strong corrosion resistance

    The bolt is made of 304 material, which has stronger corrosion resistance.

  • The sign has a beautiful appearance and strong connection

    Laser marking, clear writing, long life.Use stainless steel rivet to fix, the appearance is more beautiful, the connection is more firm.

FEATURES

Features:
Diameter range:DN50-DN600
Applicable pressure:PN16,250PSI
Applicable temperature:0℃~50℃
Suitable medium :Water and neutral liquid
Body material:QT450-10
Application fields: Water supply and drainage, water treatment, water conservancy projects, etc.
Product advantages:
1. Each product has a standard abrasive tool. The grinding tool is CNC machined for high precision.
2. The spheroidization rate of each product can reach level 2 or above.
3. The spray material is sprayed with imported powder paint.
4. Each pipe fitting is tested on site.


PARAMETERS

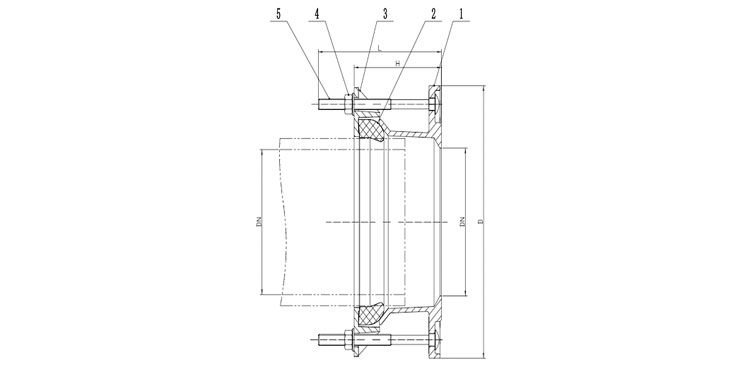

Name 1-Body 2-Rubber gasket 3-Gland 4-Nut 5-Bolt
Materials QT450-10 EPDM QT450-10 45# 45#
Size Range DN NPS D H L
DN50 59-73 59-73 50 2 165 76 130
DN65 72-85 72-85 65 2.5 185 76 130
DN80 88-103 88-103 80 3 220 76 130
DN100 108-128 108-128 100 4 225 76 130
DN125 132-154 132-154 125 5 280 76 130
DN150 159-182 159-182 150 6 295 76 130
DN175 192-209 192-209 175 7 340 76 130
DN200 218-235 218-235 200 8 340 76 130
DN250 246-270 246-270 250 10 410 85 130
DN250 271-289 271-289 250 10 410 85 130
DN300 315-332 315-332 300 12 485 90 130
DN300 322-340 322-340 300 12 485 90 130
DN350 374-391 374-391 350 14 520 90 160
DN400 417-437 417-437 400 16 580 90 160
DN450 470-485 470-485 450 18 640 90 160
DN450 480-500 480-500 450 18 640 90 160
DN500 526-546 526-546 500 20 715 90 160
DN600 630-650 630-650 600 24 840 90 160
