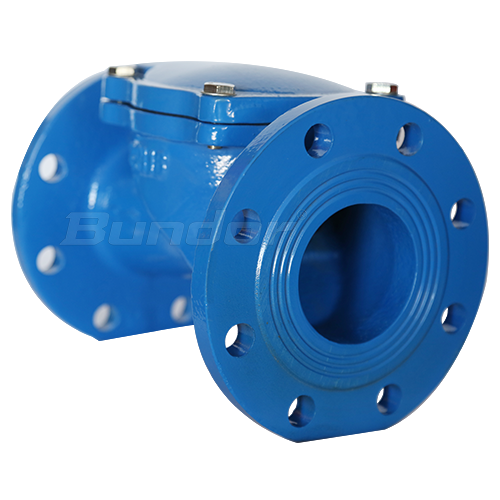

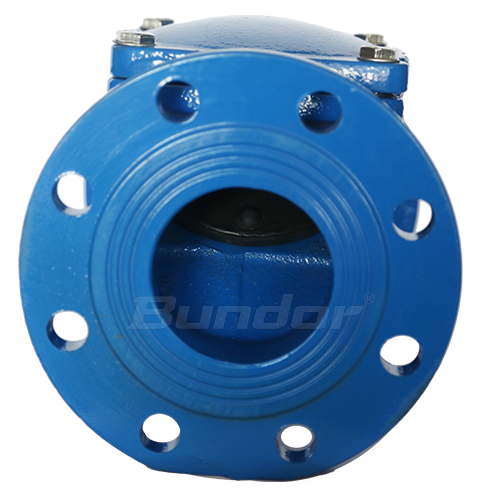

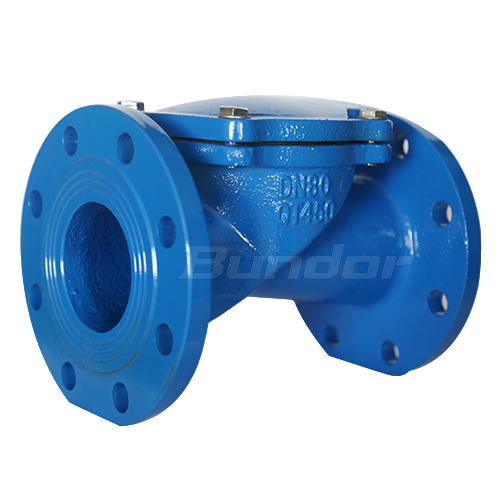

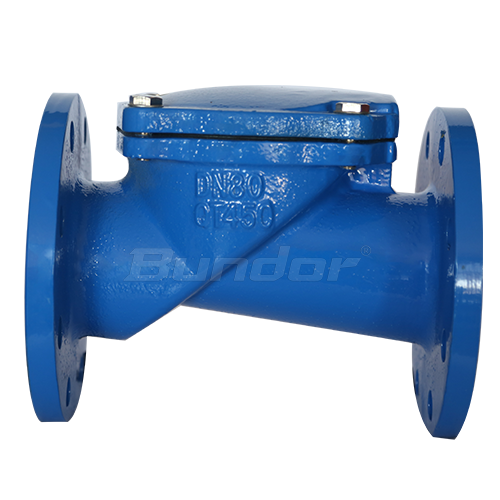

Rubber Flap Check Valve

Size Range: DN50-300

Pressure: 1.0-1.6Mpa

Body Materials: QT450

Seat Materials: NBR, EPDM

Disc Materials: QT450

INTRODUTCTION

ADVANTAGES

  • Valve shaft support is strong, axial sealing is reliable

    Valve shaft and valve body with 4 oil-free bearings, 3 O sealing, valve shaft support more powerful, more reliable axial sealing.

  • Ultrasonic cleaning before packaging

    Eliminate impurities in the valve body, ensure the cleanliness of the valve and prevent the valve itself to pipe water pollution.

  • Valve body spray brand epoxy resin plastic powder

    Valve body spray using brand aksu epoxy resin plastic powder, can deposit thicker thickness, melt curing adhesion is stronger.

  • Heat-shrinkable film for independent packaging

    PE thermal shrinkable film is used to package the valve independently, and built-in desiccant, to isolate air dust, avoid damp pollution valve.

  • The position of signboard is humanized

    The position of the signboard is humanized and set on both sides of the valve body for users to view after installation.

  • The sign has a beautiful appearance and strong connection

    Laser marking, clear writing, long life.Use stainless steel rivet to fix, the appearance is more beautiful, the connection is more firm.

FEATURES

1. Due to the inclined design of the sealing ring of the rubber flap check valve, the closing time is short and the water hammer pressure can be reduced.
2. The valve flap is made of nitrile rubber and steel plate after being pressed at high temperature. It is resistant to erosion and has good sealing performance.
3, The product structure is simple, maintenance, repair, transportation is very convenient.

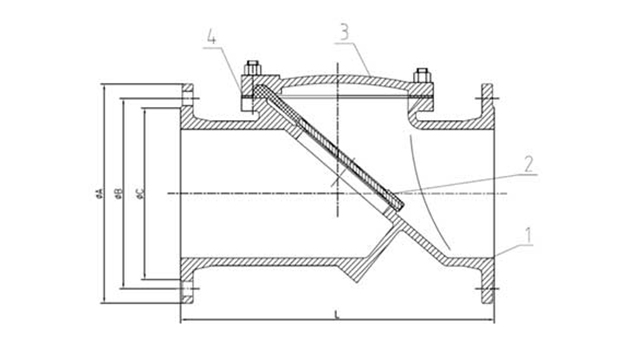

PARAMETERS

DN 50 65 80 100 125 150 200 250 300
L 200 213 238 292 326 358 495 620 692
D 165 185 200 220 250 285 340 405 460
D1 125 145 160 180 210 240 295 355 410
C 18 18 20 20 22 22 24 26 28

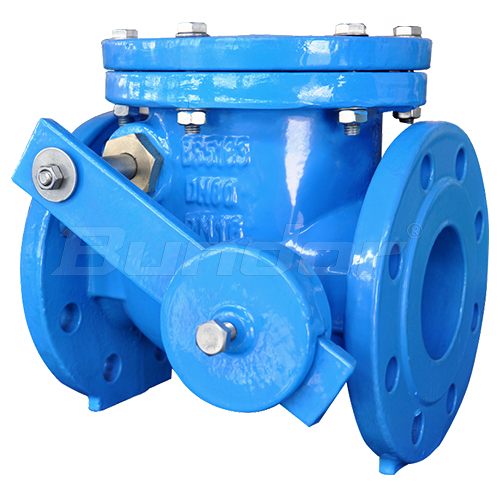

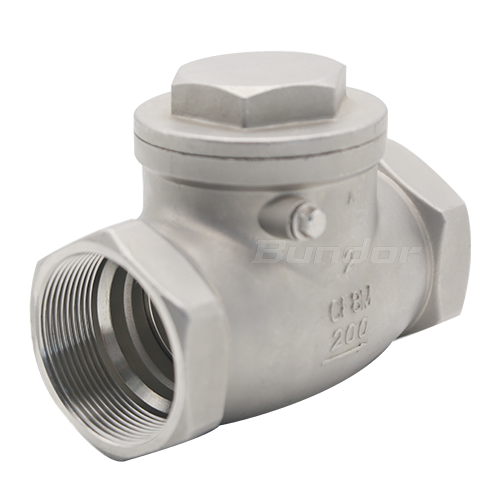

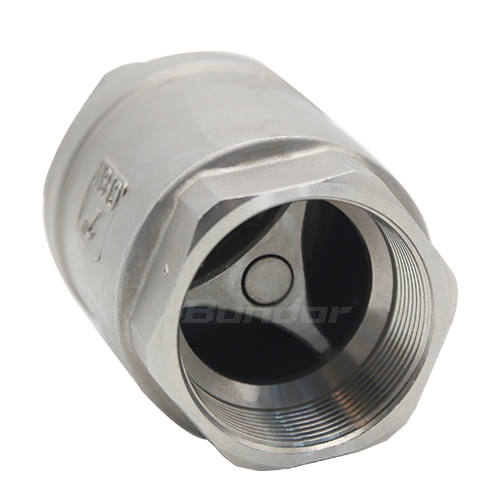

RELATED PRODUCT
