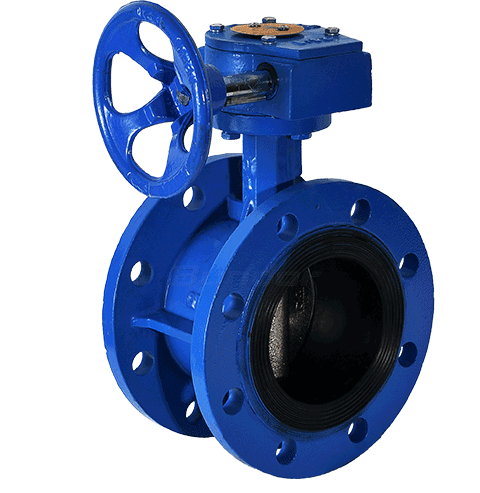

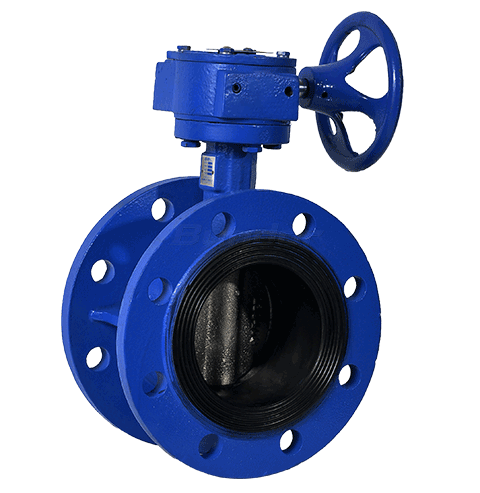

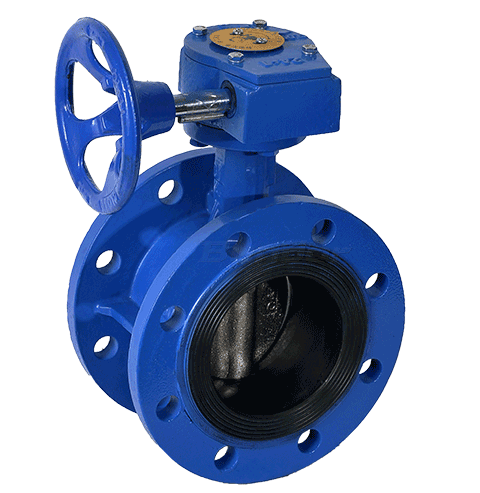

Single Eccentric Disc-Shaft
Anti-Blow Out Stem
Bi-Directional
Fire safe Design
Low Friction Body Seat
Zero Leakage
Valve side flange conform to a variety of domestic and foreign standards of multiple pressures, easy connection, wide adaptability.
Size Range: 2~48"(DN50~DN1200）
Pressure: PN10, PN16, Class125
Body Materials: Cast Iron, Ductile Iron
Seat Materials: NBR, EPDM, VITON
Disc Materials: Ductile Iron, WCB, CF8, CF8M, Al-bronze C958
Stem Materials: SS416, SS304, SS316
Valve side flange conform to a variety of domestic and foreign standards of multiple pressures, easy connection, wide adaptability.
Valve body wall thickness to meet the requirements of GB 26640, thick thickness, pressure strength is guaranteed.
Convenient installation of valve, wide contact surface with flange boss on pipeline, reliable sealing performance.
Valve body is solid body, same caliber weight is heavier than other manufacturers.
Valve shaft and valve body with 4 oil-free bearings, 3 O sealing, valve shaft support more powerful, more reliable axial sealing.
Valve body spray using brand aksu epoxy resin plastic powder, can deposit thicker thickness, melt curing adhesion is stronger.
Single Eccentric Disc-Shaft
Anti-Blow Out Stem
Bi-Directional
Fire safe Design
Low Friction Body Seat
Zero Leakage

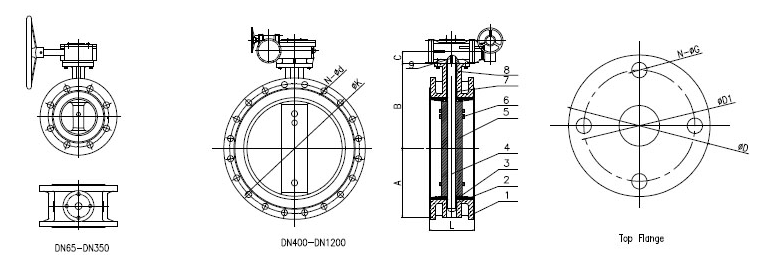

| SIZE | A | B | C | L | ANSI 150B | DIN PN 10 | DIN PN 16 | JIS 10K | Top Flange | |||||||
| mm | in | øK | N-ød | øK | N-ød | øK | N-ød | øK | N-ød | øD | øD1 | N-øG | ||||
| 65 | 22/1" | 72 | 136 | 32 | 112 | 139.7 | 4-ø19 | 145 | 4-ø18 | 145 | 4-ø18 | 140 | 4-ø19 | 77 | 57 | 4-ø7 |
| 80 | 3" | 88 | 146 | 32 | 114 | 152.4 | 4-ø19 | 160 | 8-ø18 | 160 | 8-ø18 | 150 | 8-ø19 | 65 | 50 | 4-ø7 |
| 100 | 4" | 96.5 | 158 | 32 | 127 | 190.5 | 4-ø19 | 180 | 8-ø18 | 180 | 8-ø18 | 175 | 8-ø19 | 90 | 70 | 4-ø10 |
| 125 | 5" | 115 | 179 | 32 | 140 | 215.9 | 8-ø19 | 210 | 8-ø18 | 210 | 8-ø18 | 210 | 8-ø23 | 90 | 70 | 4-ø10 |
| 150 | 6" | 126 | 197 | 32 | 140 | 241.3 | 8-ø22.4 | 240 | 8-ø22 | 240 | 8-ø22 | 240 | 8-ø23 | 90 | 70 | 4-ø10 |
| 200 | 8" | 161 | 230 | 45 | 152 | 298.4 | 8-ø22.4 | 295 | 8-ø22 | 295 | 12-ø22 | 290 | 12-ø23 | 115 | 89 | 4-ø14 |
| 250 | 10" | 199 | 271 | 45 | 165 | 361.9 | 12-ø25.4 | 350 | 12-ø22 | 355 | 12-ø26 | 355 | 12-ø25 | 115 | 89 | 4-ø14 |
| 300 | 12" | 215 | 305 | 45 | 178 | 431.8 | 12-ø25.4 | 400 | 12-ø22 | 410 | 12-ø26 | 400 | 16-ø25 | 140 | 108 | 4-ø14 |
| 350 | 14" | 261 | 350 | 45 | 190 | 476.2 | 12-ø28.4 | 460 | 16-ø22 | 470 | 16-ø26 | 445 | 16-ø25 | 140 | 108 | 4-ø14 |
| 400 | 16" | 290 | 381 | 51 | 216 | 539.7 | 16-ø28.4 | 515 | 16-ø26 | 525 | 16-ø30 | 510 | 16-ø27 | 197 | 159 | 4-ø21 |
| 450 | 18" | 307 | 392 | 51 | 222 | 577.8 | 16-ø31.8 | 565 | 20-ø26 | 585 | 20-ø30 | 565 | 20-ø27 | 197 | 159 | 4-ø21 |
| 500 | 20" | 340 | 441 | 57 | 229 | 635 | 20-ø31.8 | 620 | 20-ø26 | 650 | 20-ø33 | 620 | 20-ø27 | 197 | 159 | 4-ø21 |
| 600 | 24" | 396 | 500 | 70 | 267 | 749.3 | 20-ø35.1 | 725 | 20-ø30 | 770 | 20-ø36 | 730 | 24-ø33 | 276 | 216 | 4-ø22 |
| 700 | 28" | 496 | 567 | 66 | 292 | 863.6 | 28-ø35.1 | 840 | 24-ø30 | 840 | 24-ø36 | 840 | 24-ø33 | 300 | 254 | 8-ø18 |
| 800 | 32" | 543 | 641 | 66 | 318 | 977.9 | 28-ø41.1 | 950 | 24-ø33 | 950 | 24-ø39 | 950 | 28-ø33 | 300 | 254 | 8-ø18 |
| 900 | 36" | 584 | 692 | 118 | 330 | 1085.8 | 32-ø41.1 | 1050 | 28-ø33 | 1050 | 28-ø33 | 1050 | 28-ø33 | 300 | 254 | 8-ø18 |
| 1000 | 40" | 638 | 735 | 142 | 410 | 1200.2 | 38-ø41.1 | 1160 | 28-ø36 | 1170 | 28-ø42 | 1270 | 28-ø39 | 300 | 254 | 8-ø18 |
| 1200 | 48" | 763 | 917 | 150 | 470 | 1422.4 | 44-ø41.1 | 1380 | 32-ø39 | 1390 | 32-ø48 | 1380 | 32-ø39 | 350 | 298 | 8-ø22 |
