J41H Type Flange Steel Globe Valve

Body Materials: WCB

Disc Materials: 304 , 316

Stem Materials: 304 , 316

INTRODUTCTION

ADVANTAGES

  • The seat has a long service life

    Valve seat is made of imported rubber, with 50% rubber content, long service life and more than 10000 opening and closing times.

  • Wide edge seat with reliable sealing performance

    Convenient installation of valve, wide contact surface with flange boss on pipeline, reliable sealing performance.

  • Valve shaft support is strong, axial sealing is reliable

    Valve shaft and valve body with 4 oil-free bearings, 3 O sealing, valve shaft support more powerful, more reliable axial sealing.

  • Ultrasonic cleaning before packaging

    Eliminate impurities in the valve body, ensure the cleanliness of the valve and prevent the valve itself to pipe water pollution.

  • Valve body spray brand epoxy resin plastic powder

    Valve body spray using brand aksu epoxy resin plastic powder, can deposit thicker thickness, melt curing adhesion is stronger.

  • Heat-shrinkable film for independent packaging

    PE thermal shrinkable film is used to package the valve independently, and built-in desiccant, to isolate air dust, avoid damp pollution valve.

FEATURES

Adoptive Standards
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.

PARAMETERS

PN(Mpa) Connection Flange Pressure test Temperature
Shell Seal ≤425
1.6 RF 2.4 1.76
2.5 RF 3.75 2.75
4 RF 6 4.4

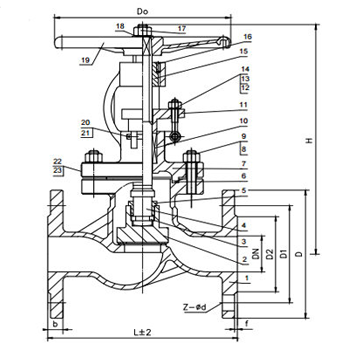

Part Name Body, Bonnet, Yoke Disc Stem Seat  Sealing Ring, Gasket Packing
Material WCB
ZG1Cr18Ni9Ti
ZG1Cr18Ni12Mo2Ti
ZGCr5Mo
2Cr13
304
306
Cr5Mo
2Cr13
304
316
25Cr2MoV
25
304
316
304 coated Flexible Graphite
