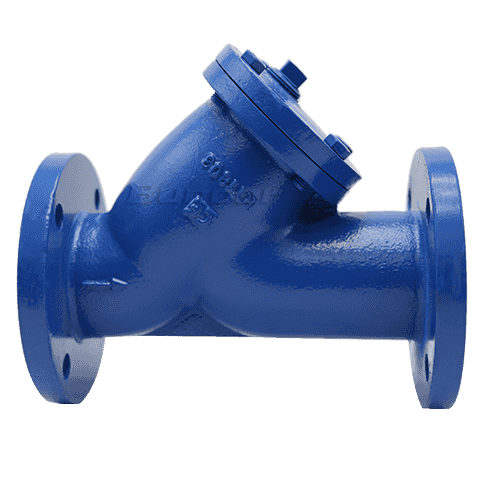

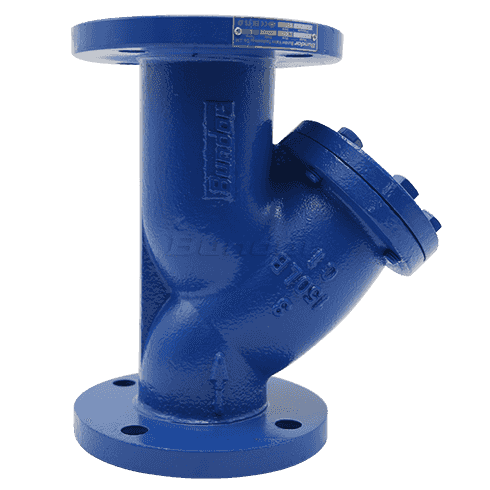

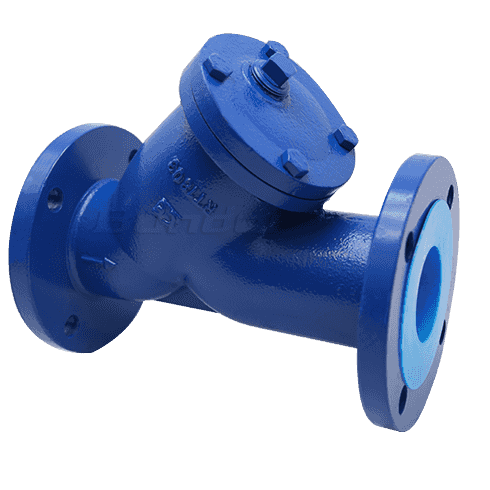

ANSI Class 125 Y Strainer

Size Range: 1/2"--18"

Pressure: Class 125

Body Materials: cast iron,WCB,stainless steel 304(CF8)

INTRODUTCTION

ADVANTAGES

  • Solid valve body, more stable

    Valve body is solid body, same caliber weight is heavier than other manufacturers.

  • Valve shaft support is strong, axial sealing is reliable

    Valve shaft and valve body with 4 oil-free bearings, 3 O sealing, valve shaft support more powerful, more reliable axial sealing.

  • Valve body spray brand epoxy resin plastic powder

    Valve body spray using brand aksu epoxy resin plastic powder, can deposit thicker thickness, melt curing adhesion is stronger.

  • The position of signboard is humanized

    The position of the signboard is humanized and set on both sides of the valve body for users to view after installation.

  • The sign has a beautiful appearance and strong connection

    Laser marking, clear writing, long life.Use stainless steel rivet to fix, the appearance is more beautiful, the connection is more firm.

  • Independent two-dimensional code identification

    Scanning code can query the inspection results of each stage in the production process of products to ensure the quality of products.

FEATURES

Standard Test:
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.

PARAMETERS

Normal diameter Test pressure MPa Suitable temperatute℃ Suitable medium
MPa shell seal
1.6 2.4 1.76 ≤250 Water,stream,oil

Body bonnet Cast iron,ductile iron,HT200、QT400-15
Screen SS304

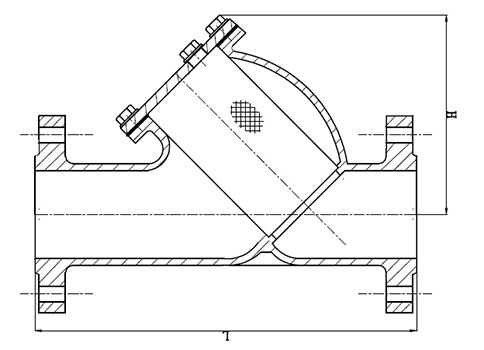

DIMENSIONS  IN  INCHES  AND  MILLIMETERS
DN L Dk D b n-d H
2" 225.4 121 152 16 4-4 161
2.5" 273 140 178 17.5 4-4 183
3" 292 152.5 190 19 4-4 219
4" 352 190.5 229 24 6-6 238
5" 416 216 254 23.8 6-9 279.3
6" 470 241.3 279 25.4 6-9 315
8" 543 298.5 343 28.6 6-9 400
10" 660.4 362 406 30.2 9-4 482
12" 762 432 483 31.8 9-4 564.6
14" 949 476 533 35 9-8 744
16" 1079.5 570 597 36.6 9-8 846
