Size Range: DN900
Pressure: PN10
Body Materials: EPDM
Steel ring Materials: Carbon Steel
Flanged Materials: Q235
The flange is forged with JB / T 81-94 standard. No difference.
It has limit bolts to prevent the ball from pulling off.
It has a compression ring made of carbon steel. A steel cord is wound around the ball cord to increase the ball strength.
The rubber sphere is made of EPDM rubber. And the rubber content is more than 40%. It has the characteristics of tensile resistance, compression resistance, aging resistance, high temperature resistance and low temperature resistance.
Each product will be inspected for sphere appearance, hardness, air tightness, pressure resistance and flange pull-out prevention before leaving the factory. Unqualified products are strictly not allowed to leave the factory.
The flange is spray-treated. Spray thickness is greater than 250um, which can reduce the rust generated in humid environment by more than 70% and improve the anti-oxidation rate by more than 20%.
Features:
Diameter range：DN900
Applicable pressure：PN10
Applicable temperature:-20～120℃
Suitable medium ：Water，Air ，Oil
Body material：EPDM
Application fields: Municipal construction, water conservancy projects, electric power, water supply and drainage, water treatment, chemical industry etc.

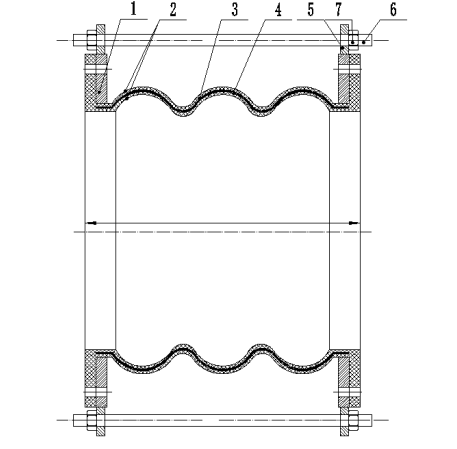

| Name | 1-Flange | 2-Body | 3-Curtain Fabric | 4-Steel Wire | 5-Otic Placode | 6-Limit Bolt | 7-Nut |
| Material | Q235 | EPDM | Nylon | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel |
