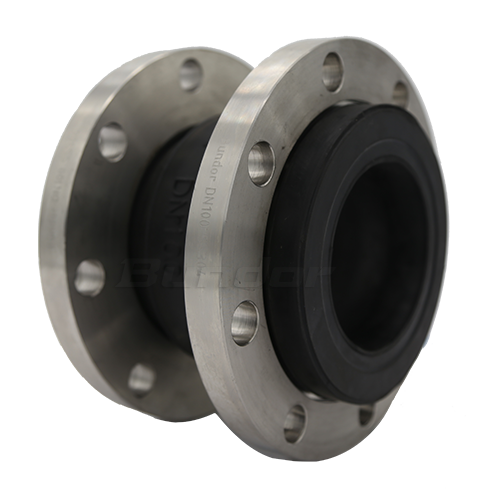

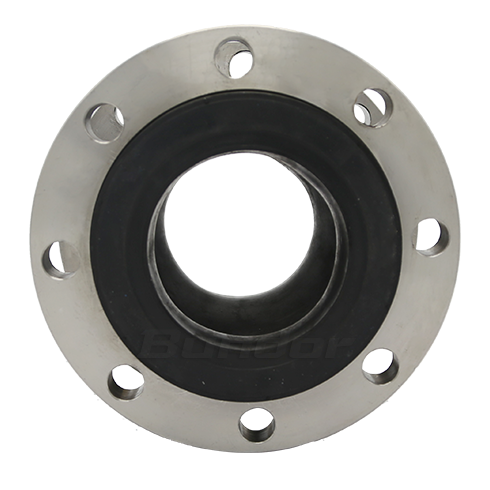

Size Range: 1.25''-64''/DN32-DN1600
Pressure: 1.0/1.6MPa
Body Materials: EPDM composites
Steel ring Materials: Carbon steel
Flanged Materials: 20#/304/316stainless steel
By CPIC 10 million quality underwrite, quality assurance 2 years, because product itself quality problem pays unconditionally.
All bonde products can provide the material inspection report of the main parts.
Scanning code can query the inspection results of each stage in the production process of products to ensure the quality of products.
The pin adopts tempering treatment, high strength, abrasion resistance, safe and reliable connection.
The bolt is made of 304 material, which has stronger corrosion resistance.
Laser marking, clear writing, long life.Use stainless steel rivet to fix, the appearance is more beautiful, the connection is more firm.
pplicable medium：Water,air, oil
Suitable temperature：-20 degrees Celsius to 120 degrees Celsius
Application field： Municipal construction, water conservancy, electric power, water supply and drainage, water treatment, chemical industry.
| DN | NPS | L | PN10 | PN16 | PN25 | |||
| ΦA | ΦB | ΦA | ΦB | ΦA | ΦB | |||
| 40 | 1 1/2'' | 95 | 150 | 110 | 150 | 110 | 150 | 110 |
| 50 | 2'' | 105 | 165 | 125 | 165 | 125 | 165 | 125 |
| 65 | 2 1/2'' | 115 | 185 | 145 | 185 | 145 | 185 | 145 |
| 80 | 3'' | 135 | 200 | 160 | 200 | 160 | 200 | 160 |
| 100 | 4'' | 150 | 220 | 180 | 220 | 180 | 235 | 190 |
| 125 | 5'' | 165 | 250 | 210 | 250 | 210 | 270 | 220 |
| 150 | 6'' | 180 | 285 | 240 | 285 | 240 | 300 | 250 |
| 200 | 8'' | 210 | 340 | 295 | 340 | 295 | 360 | 310 |
| 250 | 10'' | 230 | 395 | 350 | 405 | 355 | 425 | 370 |
| 300 | 12'' | 245 | 445 | 400 | 460 | 410 | 485 | 430 |
| 350 | 14'' | 255 | 505 | 460 | 520 | 470 | 555 | 490 |
| 400 | 16'' | 255 | 565 | 515 | 580 | 525 | 620 | 550 |
| 450 | 18'' | 255 | 615 | 565 | 640 | 585 | 670 | 600 |
| 500 | 20'' | 255 | 670 | 620 | 715 | 650 | 730 | 660 |
| 600 | 24'' | 260 | 780 | 725 | 840 | 770 | 845 | 770 |
