Applicable environment: outdoor
Suitable temperature：-20-120 degrees Celsius
Application field： Municipal construction, water conservancy projects, water supply and drainage, water treatment, etc.
The protection grade of worm gear box reaches IP65.
Body Materials: cast iron
Transmission Ratio: 24, 30, 50
Protection Grade: IP65
The protection grade of worm gear box reaches IP65.
The strength test of the worm gear box is conducted. 890N force is added to the end edge of the hand wheel.
Jacking seal adopts combined gasket seal, with reliable sealing, good durability and long life
NBR sealing gasket is installed between the box cover and box body, with reliable protective performance
The worm adopts the quality control of 45 steel, with good comprehensive mechanical properties and long service life.
Use NBR oil seal that conforms to national standards. The oil seal hole is processed by reamer with surface roughness up to Ra1.6.
Applicable environment: outdoor
Suitable temperature：-20-120 degrees Celsius
Application field： Municipal construction, water conservancy projects, water supply and drainage, water treatment, etc.

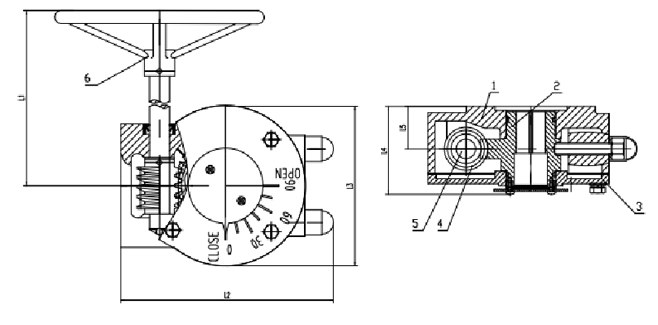

| Transmission Ratio | L1 | L2 | L3 | L4 | L5 |
| 24:1 | 149 | 146 | 105 | 70 | 35 |
| 30:1 | 206 | 210 | 153 | 90 | 41 |
| 50:1 | 217 | 215 | 156 | 92 | 49 |
